ISaGRAF PAC New Application
A Web HMI Example for ISaGRAF Professional XPAC XP-8xx7-CE6-PRO


ICP DAS ISaGRAF PAC with WinCE OS based series provide Web HMI feature, such as WinPAC WP-8xx7 series, XPAC XP-8xx7-CE6 series and ViewPAC VP-2xW7 series, and so does the new WinCE OS based ISaGRAF PAC.

Features of the ISaGRAF PAC Web HMI
  • Control/monitor devices in graphic operating interface: via the user friendly HMI interface to monitor/control the I/O modules and devices of the whole system.
  • No extra software installation: just need a normal web browser (ex: I.E¡K), normal VGA monitor.
  • Remote HMI access: login the system HMI even in the remote PC ¡V Web HMI everywhere!
  • The same operating interface both in local PAC and remote PC: no extra software purchase, designing and training fee. Save time and money! (The local web HMI is for the professional version XP-8xx7-CE6-PRO series only.)

Features of Professional OS version ISaGRAF XPAC
The Professional OS version XPAC, XP-8xx7-CE6-PRO, provides built-in Internet Explorer Software. Using the user friendly graphic control HMI, the user need is a normal VGA monitor only, no more any extra PC or NB needed. The XP-8xx7-CE6-PRO, providing Internet Explorer, FTP server and Web server functions, is more professional and cost-effective.

System Security and Data Protection
ISaGRAF PAC Web HMI provides three levels username and password protection, high/middle/low. Using different level protection for different web pages, user can figure out operator/ manager/ administrator or other access authority managements. Combine with other ISaGRAF PAC protective features, such as VIP communication security (Setting Very Important IP No.), dongle protection¡K, the system and data will be safe and secured.

Easy-to-Design
The webpage designer can easily design the Web HMI. Just simply adding the I/O module control tags provided by ICP DAS into the HTML webpage, everyone can design the graphic control Web HMI pages!

Even though the user is not a webpage designer, he can also edit his own webpage with company logo or graphic by the normal webpage editor (Ex: FrontPage, DreamWave ¡K), add the I/O module control tags from ICP DAS, and then it¡¦s easily done.

Web HMI Example ¡V by FrontPage

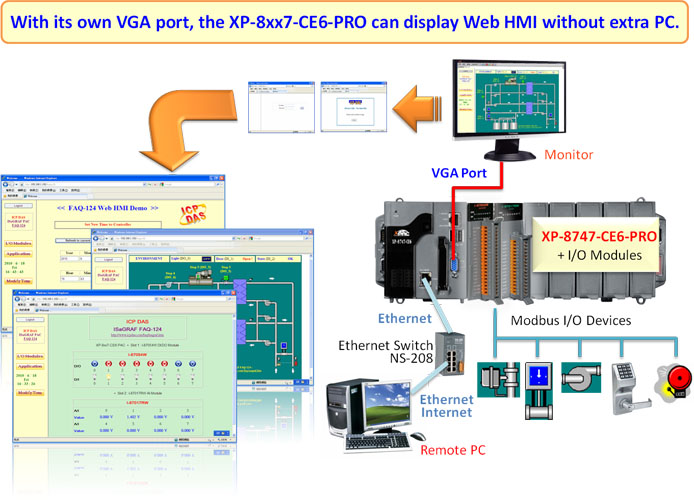

This example webpage is edited by Microsoft Office Frontpage 2003. Using the professional version XP-8xx7-CE6-PRO, please plug a monitor in the VGA port to operate the Web HMI via built-in IE browser to control the I/O devices directly. Or, in the local/ remote PC, with the same operating HMI screen, user can also control all deices via internet web browser.

For demo programs and detail information, please refer to ISaGRAF FAQ-124 : http://www.icpdas.com/faq/isagraf/124.htm
