M2M-710D adds Virtual COM function to provide more flexible solutions for Remote Maintenance & Machine-to-Machine applications!!

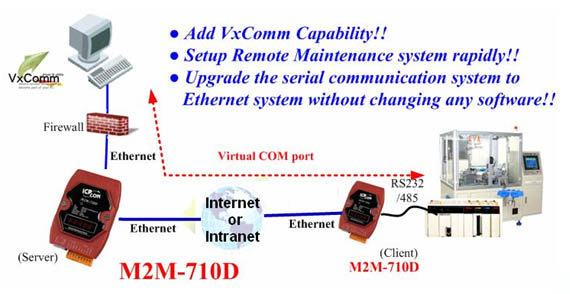

M2M-710D module is specially designed for the remote maintenance and upgrading the serial to network application solution, which provides Pair connection for making two serial devices connected through the internet, regardless of the locations as well as distances. Therefore, by means of TCP/IP and server/client architecture, M2M-71D successfully brings up the solution for manufacturers and their customers. For device manufacturers, they can direct access into the equipments remotely by internet; through this way, they can diagnose, reprogram, and even update equipments liking on the spot! M2M-710D can help users to reduce the cost of maintenance, and make enterprises competitive! Now, M2M-710D integrates the Virtual com technology. By applying this technology, the maintenance man can take the remote maintenance or monitor whenever the time is and whatever the place is. Moreover, M2M-710D is compatible with other ICP DAS devices, such as M-4132, M2M-720-A, etc., which even provides more variety selections for you applications.

Firmware :V13 or latter
Virtual COM driver: 2.9.13 or latter


Features :

  • Support Virtual COM function
  • Provide pair connection (RS-232,RS-485) on network
  • Support Server and Client communication mode
  • Be compatible with other M2M products (M-4132, M2M-520-AV,M2M-720-A)
  • Support RS-232 or RS-485 serial communication ports
  • Provide built-in self-tuner ASIC chip for RS-485 port
  • Execute web-based administration
  • Provide built-in MiniOS7 OS to reject the computer virus
  • Support Ethernet Protocol: TCP, UDP, IP, ICMP, ARP, RARP
  • Supply static IP/DHCP
  • Supply DDNS(Dynamic DNS)
  • Provide 5-Digit 7 Segment LED Display
  • Suit the harsh industry environment by the non-ventilator design
  • Make EMI, RoHS compliance

Applications:
Remote Maintenance: Build the remote maintenance system all over the world

Serial application revolution: Upgrade the original serial application to network application

Virtual Com: Remote maintenance by Virtual Com technology

Model OS CPU Flash RAM Ethernet RS232/RS485 Audio Virtual Com Pair connection Multi-client Management
M-4132
(M2M-420-A)
Linux PXA-255
400 MHz
32 MB 64 MB 1 1/1 Yes Yes Yes Yes
M2M-720-A Linux PXA-255
400 MHz
32 MB 64 MB 1 1/1 Yes Yes Yes Yes
M2M-710D MiniOS7 80186 512 MB 512 MB 1 1/1 - Yes Yes No

For more information, please visit the following website: http://www.icpdas.com/products/Remote_Maintenance/m2m-710d.htm
The user manual, please refer to the website: http://ftp.icpdas.com/pub/cd/linconcd/napdos/multimedia/m2m-710d/manual/
The data sheet, please refer to the website: http://www.icpdas.com/products/Remote_Maintenance/datasheet/M2M-710Ddatasheet.pdf
Virtual COM driver is downloaded from: http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/vxcomm_driver/
