M2M-710D
Remote Maintenance with serial streaming Solution |
 |
 |
 |
 |
 |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The M2M-710D module is specially designed for the remote maintenance and upgrading the serial to network application solution. It is suitable for the harsh industrial field. M2M-710D provides 2 major technologies on networking. The Pair connection provides TCP data tunneling between 2 serial devices. Therefore, by means of TCP/IP server/client infrastructure, M2M-710D can provide the remote serial data transmission by Ethernet between local and remote sides. This solution can transfer the site condition of equipment accurately. The maintenance engineer can directly check and diagnose the device/PLC like on-site. This can reduce the huge maintenance cost to increase the competition of enterprises.
Except for the functionality above, M2M-710D can also be accommodatingly in other equipment (M-4132, M2M-420-AV¡K). |
|
| |
|
|
| |
Serial application revolution: Upgrade the original serial application to network application |
|
| |
 |
|
| |
|
|
| |
Remote Maintenance: Establish the remote maintenance system of the equipments sold in the world |
|
| |
 |
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- Provide pair connection (RS-232,RS-485) on network
- Web-based administration
- Accommodatingly with M-4132
- MiniOS 7
- Support TCP/IP protocols
- Provide dynamic DNS function
- Built-in web server
- Built-in self-tuner ASIC chip for RS-485 port
- Quick start
- 5-Digit 7 Segment LED Display
- EMI, RoHS compliance
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
The M2M-710D module built-in web server, the user can operate and set the module easily by web browser. |
|
| |
|
|
| |
 |
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| CPU |
80186, 80 MHz |
| SRAM |
512 KB |
| Flash Memory |
Flash ROM: 512 KB ; Erase unit is one sector (64 KB) ;
100,000 erase/write cycles |
| EEPROM |
16 KB;
Data retention: 40 years; 1,000,000 erase/write cycles. |
| Built-in Watchdog Timer |
Yes |

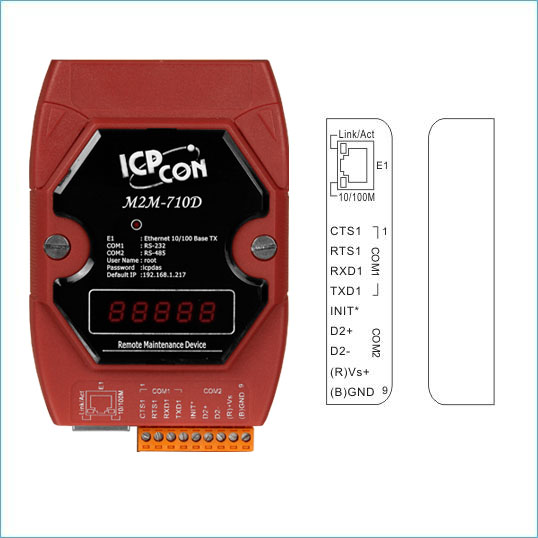

| Communication Interface |
| COM1 |
RS-232(RxD, TxD,RTS,CTS,DTR,DSR,GND); None-isolation |
| COM2 |
RS-485(DATA+, DATA-); None-isolation |
| Ethernet Port |
10/100 Base-TX |
| COM Port Formats |
| Data Bit |
7, 8: for COM1 and COM2 |
| Parity |
None, Even, Odd, Mark, Space |
| Stop Bit |
1: for COM1, COM2 |
| Baud Rate |
115200 bps Max. |
| Mounting |
| Din Rail Mount |
Yes |
| Wall Mount |
Yes |
| LED Display |
| 5-Digit 7 Segment LED Display |
Yes(for D Version) |
| System LED Indicator |
Yes |
| Mechanism |
| Flammability |
Fire Retardant Materials (UL94-V0 Level) |
| Dimension ( W x L x H ) |
123 mm x 72 mm x 33 mm |
| Operating Environment |
| Operating Temperature |
-25 ~ +75 ¢XC |
| Storage Temperature |
-40 ~ +80 ¢XC |
| Power |
| Protection |
Power Reverse Polarity Protection |
| Required Supply Voltage |
10 ~ 30 VDC (non-regulated) |
| Power Consumption |
2.7 W for M2M-710D |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| M2M-710D CR |
Remote Maintenance with serial streaming Solution (RoHS) |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
