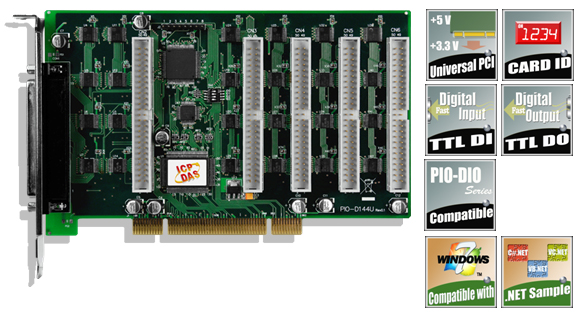

ICP DAS New Product Release: PIO-D144U
Universal PCI, 144¡Vchannel Digital I/O Boards


Introduction:
The PIO-D144U card is the new generation product with RoHS compliance requirement and the new PIO-D144U card is designed as completely compatible with PIO-D144.

The PIO-D144U supports 3.3 V/5 V PCI Bus and provides 144 TTL digital I/O lines. The PIO-D144/D144U consists of eighteen 8-bit bi-direction ports. All ports are configured as inputs upon power-up or reset.

The PIO-D144U also adds a Card ID switch on board. Users may set Card ID on a board and recognize the board by the ID via software when using two or more PIO-D144U cards in one computer.

The PIO-D144U hardware is fully compatible with the PIO-D144 hardware. Therefore, the new PIO-D144U series card is totally compatible with PIO-D144 card and requires no software modification. The PIO-D144U supports various OS such as Linux, DOS, Windows 98, Windows 2000, Windows NT, Windows XP 32-Bit, Vista 32-Bit and Windows 7 32-Bit. It also provides the DLL and Active X control, and various language sample programs in Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.

Feature & Special:
  • Universal PCI interface, supports both +5V and +3.3V PCI bus.



  • Card ID function, users can set Card ID and recognize one card from the others when users have two or more same model I/O cards.



  • Up to 144 channels of digital I/O
  • Bi-direction programmable I/O ports under software control
  • All I/O lines buffered on the board
  • Eighteen 8-bit bi-direction I/O ports
  • DIO response time is about 0.77 £gs (1.3 MHz max.)



  • Software compatible with the PIO-D144
  • Fully compatible with the PIO-DIO series product.



  • Support .NET program
  • Provide Microsoft Visual C#.NET 2005 sample programs
  • Provide Microsoft Visual Basic.NET 2005 sample programs
  • Provide Turbo C++, Borland C++, Microsoft C++ sample programs
  • Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs



  • Support Microsoft Windows 7 32-bit version OS
  • Support Microsoft Windows Vista 32-bit version OS
  • Support Windows 98/NT/2000 and XP/2003 32-bit version OS


  • Connect directly to DB-24PR, DB-24PD, DB-24RD, DB-24PRD, DB-16P8R, DB-24POR, DB-24SSR, DB-24C or any OPTO-22 compatible daughter boards
  • Provide four interrupt sources


For more information, please refer to¡K
http://www.icpdas.com/products/DAQ/pc_based/pio_d144.htm
