ICP DAS NEW ProductˇGPISO-DNM100U DeviceNet Master Universal PCI Board compatible with Windows 2K/XP


DeviceNet is a simple and open network solution. It can efficiently reduce the wiring cost and the system setting time. ICP DAS Co., Ltd is releasing a DeviceNet Master Universal PCI card (PISO-DNM100U) to provide users a DeviceNet Master solution. PISO-DNM100Uˇ¦s built-in CPU runs DeviceNet Master firmware independently. It can communicate with Universal PCI bus through DPRAM to reduce the systemˇ¦s loading and provide an efficient control way. We also provide a powerful tool and function library to help users to develop DeviceNet system rapidly. Comparing with the PISO-DNM100, PISO-DNM100U provides 5V and 3.3V Universal PCI interface. The library and APIs of these two boards are totally compatible. Users can rapidly upgrade their system from PISO-DNM100 to PISO-DNM100U without any effort. In addition, ICP DAS also provides various DeviceNet Remote I/O units and DeviceNet Gateway solutions for users. Please refer to the web page listed below: http://www.icpdas.com/products/Remote_IO/can_bus/can_intro.htm

PISO-DNM100U can be installed in the Windows 2K/XP and provide many demos which are developed by various toolkits, like Visual C++ˇBBorland C++ BuilderˇBVisual Basic and LabView. These demos would help users to be familiar with the PISO-DNM100U quickly.

Assorted with the free graphical tool (DNM Utility), users can easily manage and integrate with DeviceNet industrial devices by providing various devices scan modes and debug functions. When planning or developing DeviceNet application, It is convenient to help users to scan devices in network.


Finally, PISO-DNM100U can help users to learn how to control DeviceNet devices in short time, reduces developing time and establishe a stable system. The image below is a typical architecture for DeviceNet network.


Features:
  • Universal PCI supports both 5 V and 3.3 V PCI bus
  • Microprocessor: 80186 80MHz
  • CAN bus interface: ISO/IS 11898-2, 9-pin D-Sub connector or 5-pin screw terminal connector
  • Philip SJA1000T CAN Controller , 82C250/251 Transceiver
  • 2500Vrms isolation on CAN interface
  • Programmable transfer-rate 125 kbps, 250 kbps, 500 kbps.
  • The maximum fragment number is (input/output) up to 64
  • Support Group 2 Only Server and UCMM functions
  • Programmable Master MAC ID
  • Each port support up to 64 nodes
  • Support I/O Operation Mode: Poll, Bit-Strobe and Change of State/Cyclic
  • Support Auto-Scan slave device function
  • Support on-line adding and removing devices
  • Support Auto-Reconnect when the connection is broken

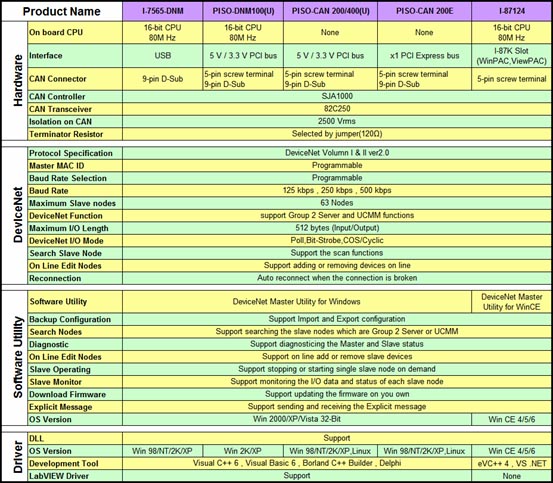

The comparison of all the DeviceNet Master products developed by ICP DAS :


For more detail about PISO-DNM100U, please visit web page listed below:
http://www.icpdas.com/products/Remote_IO/can_bus/piso-dnm100.htm
