ICP DAS New Product Release: PIO-D24U/D56U
Universal PCI, 24/56¡Vchannel Digital I/O Boards


Introduction:

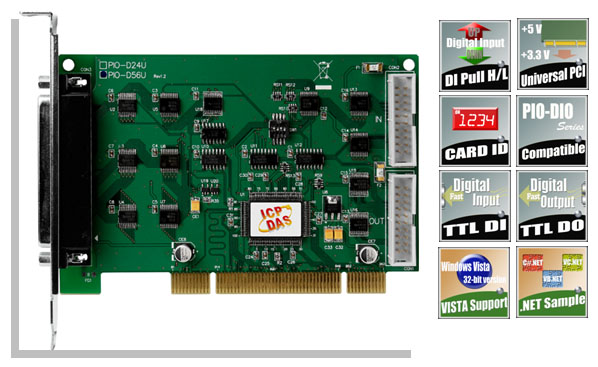

The PIO-D24U/D56U card is the new generation product that ICP DAS provides to meet RoHS compliance and the new PIO-D24U/D56U card is designed as a direct replacement for the PIO-D24/D56.

The PIO-D24U/D56U supports 3.3 V/5 V PCI Bus and provides 24 or 56 TTL digital I/O lines. The PIO-D24 consists of three 8-bit bi-direction ports. The 8-bit ports are named as port A (PA), port B (PB) and port C (PC). All ports are configured as inputs upon power-up or reset. In additional, the PIO-D56U provides the 16-bit digital inputs and 16-bit digital outputs.

The PIO-D24U/D56U also adds a Card ID switch and pull-high/ pull-low resisters for DI on board. Users can set Card ID on a board and recognize the board by the ID in software when using two or more PIO-D24U/56U cards in one computer. The pull-high/ pull-low resisters allows to specify the DI status; when the DI channels are unconnected, the DI status will remain in high or low status without being left floating.

The PIO-D24U/D56U software is fully compatible with the PIO-D24/D56 software. Therefore, the new PIO-D24U/D56U series card is totally compatible with PIO-D24/D56 card and requires no software modification. The PIO-D24U/D56U supports various OS such as Linux, DOS, Windows 98, Windows 2000, Windows NT, Windows XP 32-Bit, and Vista 32-Bit. It also provides the DLL and Active X control, and various language sample programs of Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.

Feature & Special:
  • Universal PCI interface, supports both +5 V and +3.3 V PCI bus.



  • Card ID function, users can set Card ID to recognize sequence of card when users use two or more same model I/O cards.



  • Digital input status can be set to pull-high or pull-low; when the digital input channels are unconnected, the status will remain in high or low status. (non-floating)



  • Up to 56/24(PIO-D56/PIO-D24) channels of digital I/O
  • Bi-direction programmable I/O ports under software control
  • All I/O lines buffered on the board
  • DIO response time is about 0.77 £gs (1.3 MHz max.)



  • Compatible with software of PIO-D24/D56
  • Fully compatible with the PIO-DIO series product.



  • Support .NET program
  • Provide Microsoft Visual C#.NET 2005 sample programs
  • Provide Microsoft Visual Basic.NET 2005 sample programs
  • Provide Turbo C++, Borland C++, Microsoft C++ sample programs
  • Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs



  • Support Microsoft Windows Vista 32-bit version OS
  • Support Windows 98/NT/2000 and XP/2003 32-bit version OS



  • Connect directly to DB-24PR, DB-24PD, DB-24RD, DB-24PRD, DB-16P8R, DB-24POR, DB-24SSR, DB-24C or any OPTO-22 compatible daughter boards
  • Four interrupt source: PC0,PC1,PC2,PC3
  • Double side SMD, short card.



For more information, please refer to¡K
http://www.icpdas.com/products/DAQ/pc_based/pio_d56_24.htm
