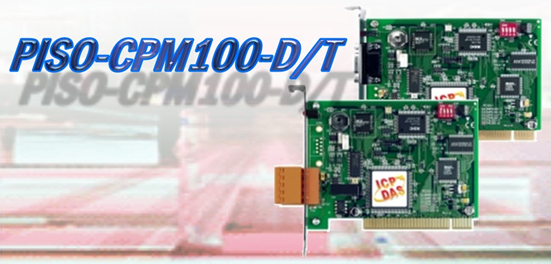

PISO-CPM100 CANopen Master PCI Board compatible with Windows 95/98/2K/XP


CANopen is one kind of the network protocol based on the CAN bus. It can efficiently reduce the wiring cost and the system setting time. In order to control and monitor CANopen network more easily, ICP DAS releases PISO-CPM100 (CANopen Master PCI board) to provide users a CANopen Master solution. PISO-CPM100 has 80186-80MHz CPU inside. Therefore, it not only reduces the systemˇ¦s loading but also provides an efficient control way. ICP DAS provides a powerful tool and library to help users to establish the connection with CANopen slave devices of ICP DAS or of others easily, and reduce the development period.

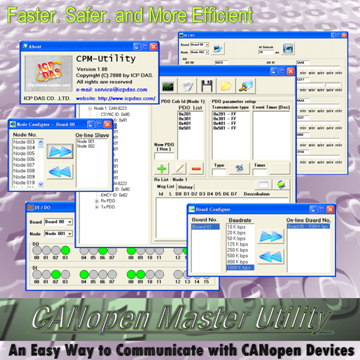

Applying PISO-CPM100 with the free tool (CPM_Utility), users can easily manage and integrate with CANopen industrial devices. CPM_Utility has the real-time monitor function and it would help users to check devicesˇ¦ connection status of the remote nodes.



Product Features:

  • Microprocessor: 80186, 80MHz
  • CAN bus interface: ISO/IS 11898-2, Sub D9 connector or 5-pin screw terminal connector
  • NXP SJA1000T CAN Controller , 82C250/251 Transceiver
  • 2500Vrms isolation on CAN interface
  • 8 kinds of programmable bauds, such as 10K, 20K, 50K, 125K, 250K, 500K, 800K, and 1M bps.
  • Support node guarding protocol.
  • Standard CANopen specification DS-301 v4.01.
  • Support the CANopen slaves which follow the specification DS-401 v2.1
  • Provide Event-triggered, remote-requested, cyclic and acyclic SYNC of PDO mode.
  • The PDO communication supports single digital channel output so that users can just modify the value of one digital channel without changing the others.
  • Allow dynamic PDO mapping
  • The SDO communication supports segment protocol.
  • Support on-line adding and removing devices
  • Support Multi-Master to Single-Slave
  • Support max 120 CANopen nodes

Specifications:
Bus
PCI, 33MHz 32bit 5V PCI bus (V2.1) plug and play
CAN Channel
1
Isolated
2.5KV
Max. Speed (bps)
1M
Microprocessor
80186
Flash/SRAM (KB)
512 / 512
EEPROM
2KB
Real-Time Clock
Yes
LED
Rx/Tx LED, ERR LED
Firmware
CANopen
Connector
DB9(Female) / 5-pinScrew Terminal
Driver Support OS
Windows 95/98/2K/XP
Environmental
Operating temp: 0~60˘J,Humidity: 0~90% non-condensing
Power
+5V@350mA(Max.)
Dimensions
130mm x 110mm
