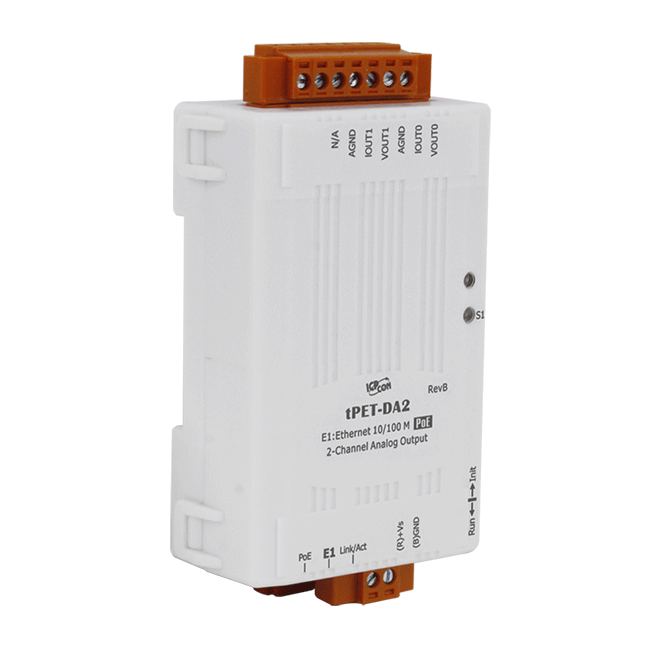

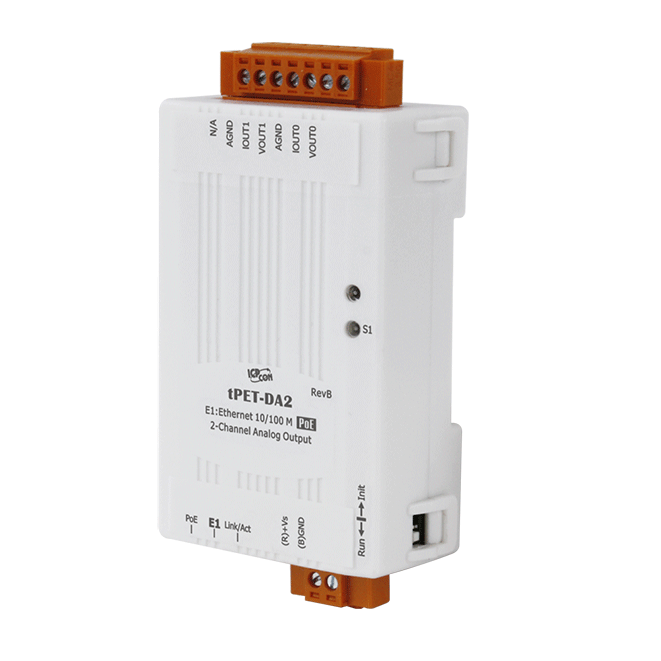

tPET-DA2
Tiny PoE Ethernet Module with Isolated 2-ch AO
Features
- Web Server for Configuration
- Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
- I/O Pair Connection (Push and Pull)
- Supports Dual-watchdog
- Supports Firmware Update via Ethernet
- Built-in I/O
- 2-channel Outputs
- Voltage Outputs and Current Outputs
Introduction
The tET-DA2/tPET-DA2 is an analog output module that includes 2 analog output channels and provides a programmable output range on all analog outputs (0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA). It provides 4 kV ESD protection as well as 3000 VDC intra-module isolation.
Applications
- Industrial Automation
- Industrial Machinery
- Building Automation
- Food and Beverage Systems
- Semiconductor fabrication
- Control Systems
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
|---|---|
| CPU | 32-bit MCU |
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| 2-way Isolation | I/O: 3000 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | Run, Ethernet, PoE |
| Analog Output | |
|---|---|
| Channels | 2 |
| Type | Voltage, Current |
| Range | Voltage: 0 ~ 10 V Current: 0 ~ +20 mA, +4 ~ +20 mA |
| Resolution | 12-bit |
| Accuracy | ±0.1% of FSR |
| Programmable Output Slope | Voltage: 0.0625 ~ 512 V/Second Current: 0.125 ~ 1024 mA/Second |
| Open Wire Detection | For 4 to 20 mA only |
| Voltage Output Capability | 10 V @ 10 mA |
| Current Load Resistance | 500 Ω |
| Individual Channel Configuration | Yes |
| Power-on Value | Programmable |
| Safe Value | Programmable |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100 Base-Tx |
| PoE | Yes |
| Access Control | Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP, MQTT, and SNMP V2c |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 2.2 W |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block | +12 to +48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 52 x 96 x 27 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
