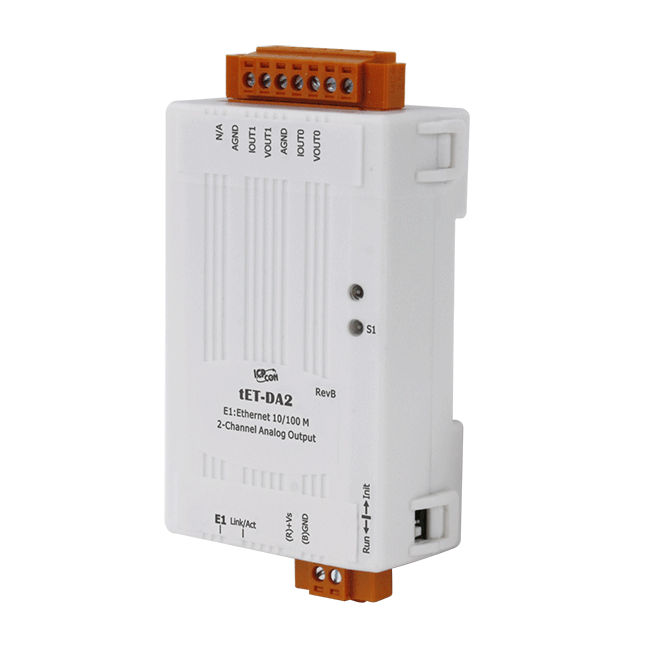

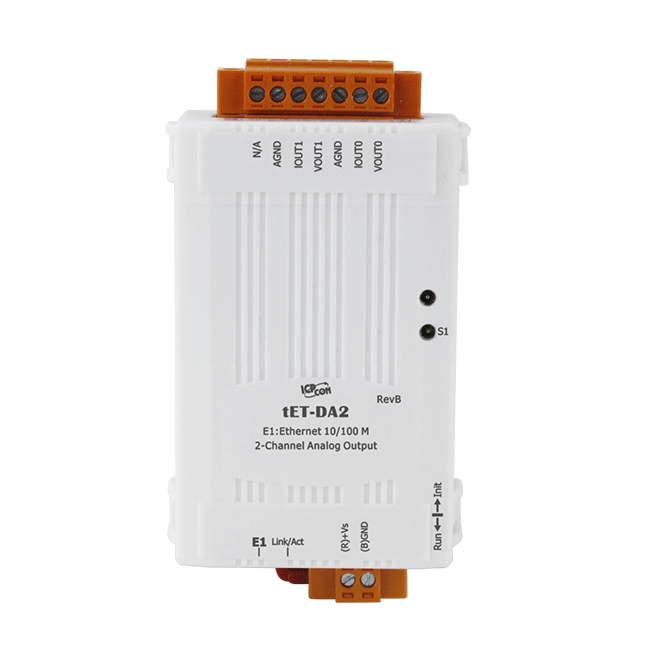

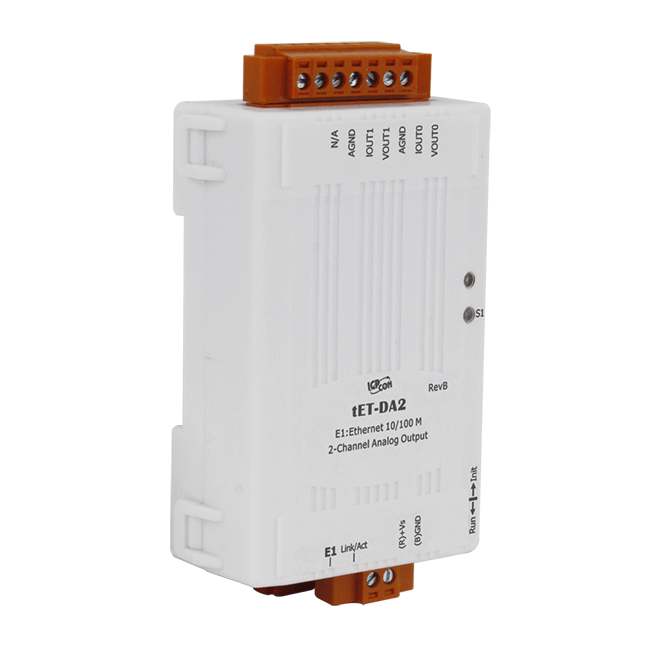

tET-DA2
Introduction
The tET-DA2/tPET-DA2 is an analog output module that includes 2 analog output channels and provides a programmable output range on all analog outputs (0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA). It provides 4 kV ESD protection as well as 3000 VDC intra-module isolation.
Applications
- Industrial Automation
- Industrial Machinery
- Building Automation
- Food and Beverage Systems
- Semiconductor fabrication
- Control Systems
Ordering Information
PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
---|---|---|---|
This combination include other products.
Similar Products
Software | |
---|---|
Built-in Web Server | Yes |
CPU Module | |
---|---|
CPU | 32-bit MCU |
Watchdog Timer | Module, Communication (Programmable) |
Isolation | |
---|---|
2-way Isolation | Ethernet: 1500 VDC I/O: 3000 VDC |
EMS Protection | |
---|---|
EFT (IEC 61000-4-4) | ±4 kV for Power Line |
ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
LED Indicators | |
---|---|
Status | Run, Ethernet |
Analog Output | |
---|---|
Channels | 2 |
Type | Voltage, Current |
Range | Voltage: 0 ~ 10 V Current: 0 ~ +20 mA, +4 ~ +20 mA |
Resolution | 12-bit |
Accuracy | ±0.1% of FSR |
Short Circuit Protection | Yes |
DA Output Response Time | 1 ms per channel |
Programmable Output Slope | Voltage: 0.0625 ~ 512 V/Second Current: 0.125 ~ 1024 mA/Second |
Open Wire Detection | For 4 to 20 mA only |
Voltage Output Capability | 10 V @ 10 mA |
Current Load Resistance | 500 Ω |
Individual Channel Configuration | Yes |
Power-on Value | Programmable |
Safe Value | Programmable |
Ethernet | |
---|---|
Ports | 1 x RJ-45, 10/100 Base-Tx |
Access Control | Password and IP Filter |
Protocol | Modbus TCP, Modbus UDP, MQTT, and SNMP V2c |
Power | |
---|---|
Reverse Polarity Protection | Yes |
Consumption | 2.1 W |
Powered from Terminal Block | +12 to +48 VDC |
Mechanical | |
---|---|
Dimensions (mm) | 52 x 96 x 27 (W x L x H) |
Installation | DIN-Rail mounting |
Environment | |
---|---|
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -30 ~ +80 °C |
Humidity | 10 to 90% RH, Non-condensing |
