XV111

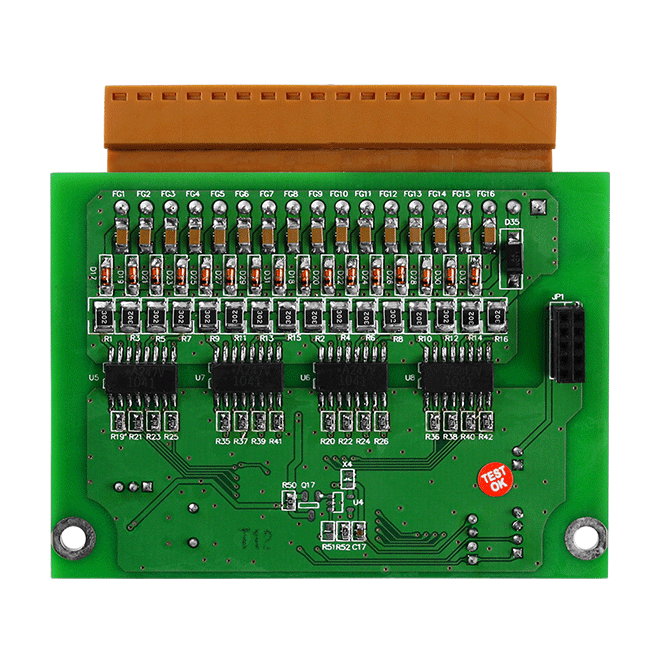

16-ch Isolated DO (3.5 ~ 50VDC) Expansion Board
Features
- Sink-type Digital Output
- Configurable Power-on Value Settings
- Overvoltage Protection for Digital Output
- Short-circuit Protection for Digital Output
Introduction
The XV111 provides 16 channels for digital output, each of which features photocouple isolation. The XV111 supports sink-type output with short circuit protection and provides options for configuring power-on digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided. The XV111A has the same specifications as the XV111, except that the output types are reversed.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal ±8 kV Air For Random Terminal |
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | Sink |
| Load Voltage | 3.5 ~ 50 VDC |
| Load Current | 600 mA/channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | Yes |
| Short-circuit Protection | Yes |
| Power on Value | Yes, Programmable |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 |
| Baud Rate | 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus/RTU |
| Power | |
|---|---|
| Consumption | 0.2 W Max. |
| Powered from Terminal Block | 5 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
