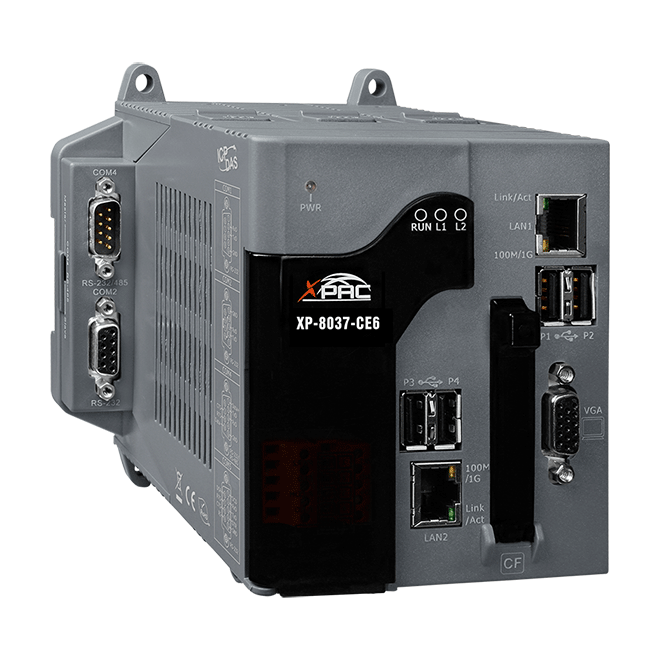

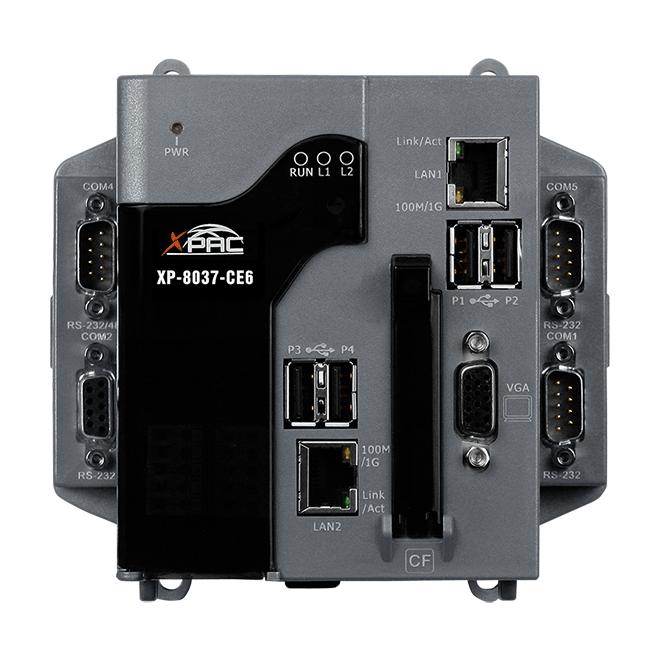

The XP-8x37-CE6 Series (XP-8037-CE6/XP-8137-CE6/XP-8337-CE6/XP-8737-CE6) is the new generation ISaGRAF PAC from ICP DAS. Each is equipped with an x86 CPU (1 GHz) dual-core running a Windows Embedded CE 6.0 operating system, a variety of input/output ports (VGA, USB, Ethernet, RS-232/485), and a range of I/O slots (0/1/3/7) that can be used to integrate high-performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series).

The benefits of running Windows CE 6.0 on an XPAC device include hard real-time capabilities, small core size, fast boot speed, interrupt handling at a deeper level, and achievable deterministic control. XPAC devices are also capable of running ISaGRAF and PC-based control software, such as Visual Basic .NET, Visual C#, etc., providing all of the best features of both traditional PLCs and Windows capable PCs.

Notice:
ISaGRAF can not run on 64-bit Windows 7/8 PCs. Win-GRAF would be proper choice.


   Major advantage compared with the WP-8xx7 and VP-2xW7 :
    ‧ The USB-mouse operations and Ethernet communication of the XP-8x37-CE6 are more effective
       (less CPU loading) than the WP-8xx7 and VP-2xW7.
    ‧ The memory size (Flash and SDRAM) of the XP-8x37-CE6 is larger than the WP-8xx7 and VP-2xW7.

   The features of the ISaGRAF workbench Ver. 3.x include:
    ‧ IEC 61131-3 Standard Open PLC Programming Languages (LD, FBD, SFC, ST, IL) and Flow Chart (FC).
    ‧ Auto-scan I/O
    ‧ Online Debugging/Control/Monitoring, Offline Simulation
    ‧ Simple Graphic HMI
    ‧ Support eLogger HMI



   The XPAC Series XP-8x37-CE6 supports eLogger HMI:

                                                                    Running HMI and Control Logic in the Same PAC
