WF-2051

Wi-Fi I/O Module with Isolated 16-ch (Dry, Wet) DI (Asia Only)

Features

• Support sink/source type digital inputs
• Compatible with IEEE 802.11b/g standards
• Support infrastructure and ad hoc modes for wireless networks
• Support WEP, WPA and WPA2 wireless encryption
• Support Modbus/TCP and UDP protocols
• Support DHCP network configuration
• Built-in Watchdog
• Wide Operating Temperature Range
• 4 kV ESD Protection

Introduction

The WF-2051 is a 16-channel isolated digital input with 32-bit counters module and it is one of the members of the WF-2000 wireless product family. In addition, the WF-2051 has WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2051 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2051 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.

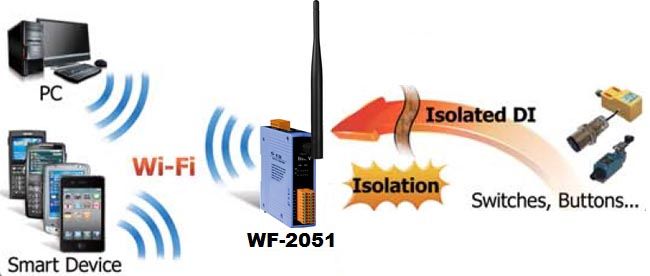

Applications

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES WF-2051 CR	DESCRIPTIONWi-Fi I/O Module with Isolated 16-ch (Dry, Wet) DI (Asia Only) (RoHS) Includes ANT-124-05 Antenna and CA-0910 Cable

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Isolation
Intra-module Isolation	DI: 3750 VDC

Wi-Fi
Transmission Distance (LoS)	50 meters (LOS)
Standard	IEEE 802.11 b/g* IEEE 802.11 b/g/n**
RX Sensitivity	-83 dBm @ 11 Mbps* -93 dBm @ 11 Mbps**
Output Power	8 dBm @ 11 Mbps* 14 dBm @ 11 Mbps**
Mode	Infrastructure & Ad-hoc* Infrastructure & Limit-AP**
Encryption	WEP, WPA and WPA2
Antenna	5 dBi (Omni-Directional)

Digital Input/Counter
Channels	16 Counters: 8
Type	Dry Contact Wet Contact
Sink/Source (NPN/PNP)	Dry: Source Wet: Sink/Source
ON Voltage Level	Dry: Close to GND Wet: +10 ~ 50 VDC
OFF Voltage Level	Dry:Open Wet: +4 VDC Max.
Max. Counts	32-bit (4294967295)
Frequency	8K Hz Max.
