Universal PCI, Serial Communication Board with 8 RS-232 ports
Features
- Supports 3.3 V/5 V PCI bus
- Provides 8 RS-232 ports
- Automatically select an available COM port number
- Supports COM port number selection under software control
- 256-byte Hardware FIFO for Each Port
- Short Card Design
- RoHS compliant & No Halogen
Introduction

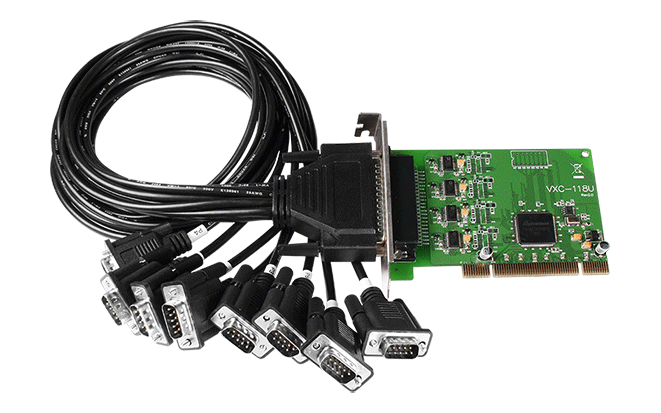

The VXC-118U card provides 8 RS-232 serial ports. It is equipped with a 256-byte hardware FIFO for each port, supports for speed up to 115200 bps and supports full-duplex communication. The VXC-118U card support drivers choose an available COM port number automatically.
The serial communication card are designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, computers and almost any device with an RS-232 port.
The serial communication card are designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, computers and almost any device with an RS-232 port.
Applications
- ndustrial Machinery
- Building Automation
- Restaurant Appliances
- Laboratory Equipment & Research
- Industrial Communication
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Hardware | |
|---|---|
| Connector | Female DB-62 |
| COM Ports | |
|---|---|
| Ports | 8 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND) |
| Baud Rate | 50 - 115200 bps |
| Parity | None, Even, Odd, Mark, Space |
| Data Bit | 5, 6, 7, 8 |
| Stop Bit | 1, 1.5, 2 |
| FIFO Size | Internal 256 bytes |
| Power | |
|---|---|
| Consumption | 120 mA @ 5 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 121 x 132 x 22 (W x L x D) |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
