VP-2208-CE7

7" Win-GRAF Based ViewPAC with Cortex-A8 CPU and WinCE 7.0

Features

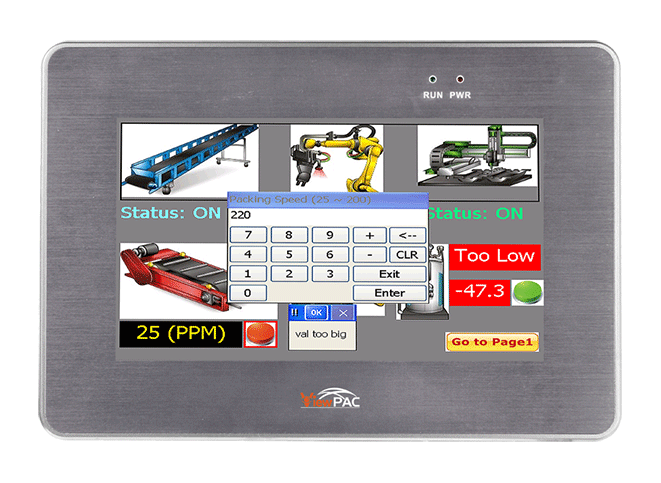

• 7" TFT LCD
• Cortex-A8, 1.0 GHz CPU
• CE7 (Windows Embedded Compact 7)
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• Hard Real-Time Capability
• PoE (Power over Ethernet)
• NEMA 4/IP65 Compliant Front Panel
• Modbus RTU/TCP (Master, Slave)
• Support eLogger HMI

Introduction

The Win-GRAF ViewPAC Series (VP-2208-CE7/VP-3208-CE7/VP-4208-CE7/VP-5208-CE7/VP-6208-CE7) are WinCE7 based Win-GRAF SoftLogic ViewPAC that combine computing and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition, and control in an individual PAC.

It is equipped with a Cortex-A8 (1 GHz) CPU, TFT LCD, and a variety of connectives including Gigabit Ethernet, USB port, RS-232, and RS-485 interface. I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules. Designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity, and extreme dust. Designed to operate over a wide -10° C ~ 60° C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts.

The Win-GRAF ViewPAC are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control, and also provide a free HMI software "eLogger" to edit the HMI by graphical drag and drop the HMI objects, or support M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications, and all can exchange data with Win-GRAF applications. So the application's design is more convenient and practical.

Applications

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES VP-2208-CE7 CR	DESCRIPTION7" Win-GRAF Based ViewPAC with Cortex-A8 CPU and WinCE 7.0 (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Software
OS	Windows CE 7.0
Protocol	• NET ID • eLogger HMI • Modbus TCP/IP Master • Modbus TCP/IP Slave • Modbus RTU/ASCII Master • Modbus RTU Slave • DCON Protocol • User-defined Protocol • I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O • Application Protection • Data Binding • On Line Change • Schedule Control • Retain Variables • File Access and Data Log
Development	Embedded Win-GRAF SoftLogic (IEC 61131-3)
Service	FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5
Framework Support	.Net Compact Framework 3.5
Multilanguage Support	English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK	Dll for VC, Dll for Visual Studio.Net 2008

Main Unit
CPU	Cortex-A8, 1.0 GHz
64-bit Hardware Serial Number	Yes
System Memory	512 MB DDR3 SDRAM, 256 MB Flash (SSD)
Storage	4 GB microSD card (up to 32 GB)
Non-Volatile Memory	128 KB MRAM, 16 KB EEPROM
Real Time Clock	Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer	Dual Watchdog Timer

Display
Type	LCD
Size	7" (16:9)
Backlight Life	20,000 hours
Brightness	400 cd/m2
Resolution	800 x 480
Touch Panel	4-wire, resistive type; light transmission: 80 %
Contrast Ratio	500 : 1

LED Indicators
Status	1 x System, 1 x Power

HMI
Buzzer	Yes
Rotary Switch	Yes, (0 ~ 9)

Audio
Jack	Earphone-Out

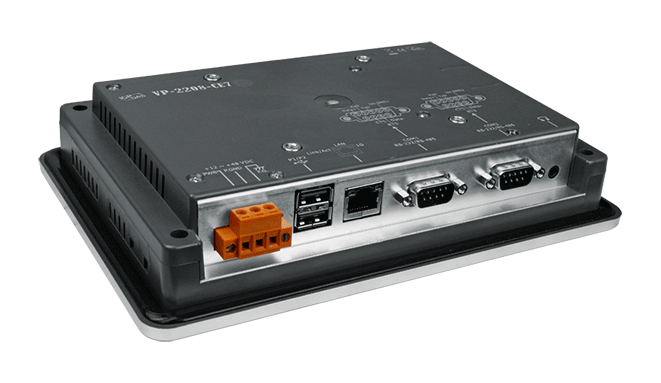

Ethernet
Ports	1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)

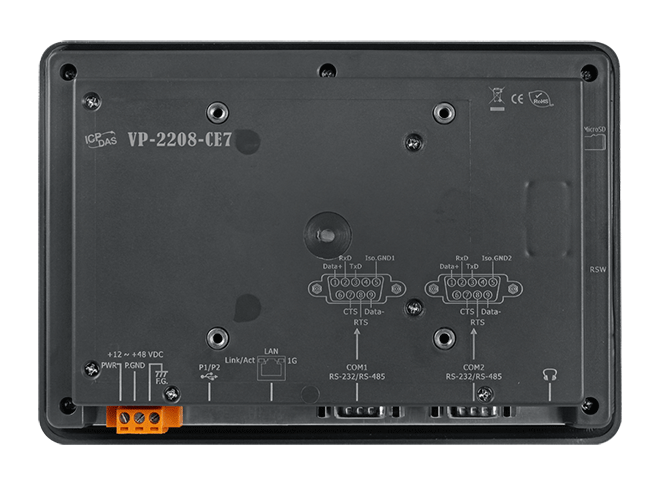

COM Ports
Ports	2 x RS-232/RS-485 (2500 VDC Isolated)

USB
Ports	2 x USB 2.0

Power
Input Range	+12 ~ 48 VDC
Consumption	6.0 W
Powered from PoE	Yes

Mechanical
Casing	Plastic
Dimensions (mm)	213 x 148 x 44 (W x L x H)
Panel Cut-Out (mm)	197 x 133, ± 1 (W x H)
Installation	Panel mounting, VESA wall mounting (75 x 75)
Ingress Protection Rating	Front panel: NEMA 4/IP65
Weight	1 Kg
