SP-S2-DS

Dye-sensitized cell charging module
SP-S2-DS
SP-S2-DS
SP-S2-DS
SP-S2-DS
SP-S2-DS
SP-S2-DS
SP-S2-DS
SP-S2-DS
SP-S2-DS
SP-S2-DS

Features

  • Conversion efficiency less affected by light angle
  • Generate electricity in dim light environment
  • IP55 rated waterproof
  • Offers Wall-mounted and Magnetic-mounted mechanisms for installation
RoHS WEEE

Introduction

Dye-sensitized Cell charging module belongs to the third generation of solar cell technology. Different from traditional silicon solar cells, the biggest advantage of the dye-sensitive battery charging module is that it can still generate electricity in low-light environments such as indoor light, and the conversion efficiency of the battery is not easily affected by the angle of light. The power generation efficiency of the dye-sensitive battery charging module is better in low-light environments such as indoors and near windows. Therefore, when the dye-sensitive battery charging module is combined with emergency products, it can make full use of the light energy in the daily environment and reduce general power consumption and maximize energy efficiency.

Applications

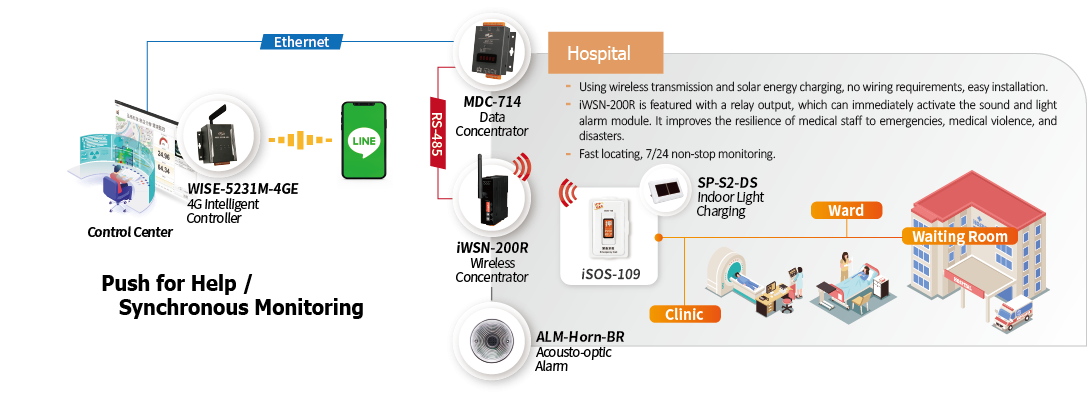

  • Wireless light charging emergency SOS system

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES SP-S2-DS     CR DESCRIPTIONDye-sensitized cell charging module (RoHS)
This combination include other products.

Similar Products

Power
Power (mW) ≥1.67
Voc (V) 0.55 ~ 0.65
Isc (mA) ≥3.51
Mechanical
Dimensions (mm) 133 x 85 x 84(W x L x H)
Installation Wall-mount / Magnet adsorption
Environment
Operating Temperature -25℃ ~ +60℃
Storage Temperature -20 ~ +45°C
Humidity 10 ~ 90% RH(Non-condensing)
