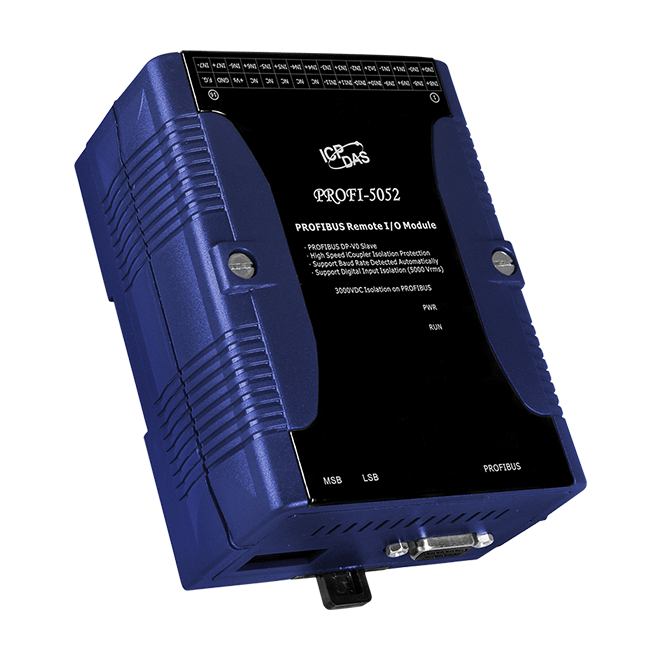

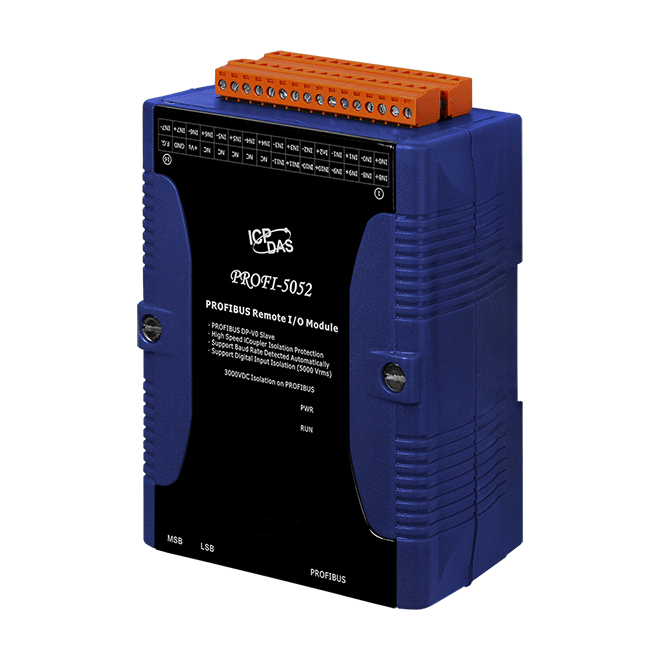

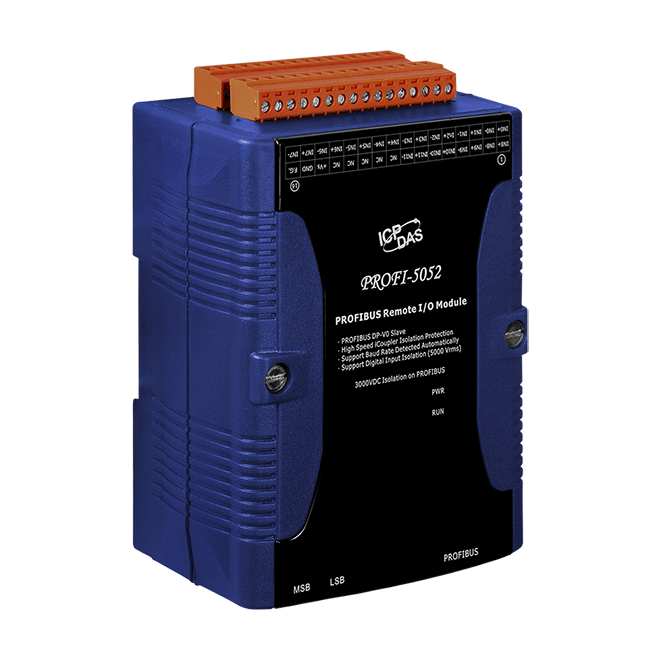

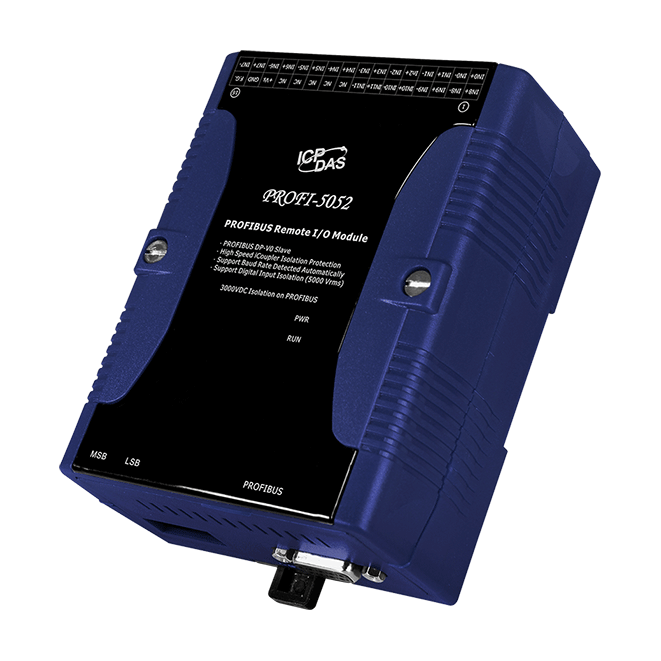

PROFI-5052

PROFIBUS Remote I/O Module (12-channel Isolated Digital Input)

Features

Protocol & Hierarchy : DP-V0 Slave
Transmission Rate Setting : detected automatically
Address Setting : 0~99 set by rotary switches
I/O modules Configuration : Configured by GSD file
Network Isolation Protection : High Speed iCoupler
DC Isolation Protection : 3000 VDC on PROFIBUS side
4KV ESD Protection : Contact for each terminal

Introduction

The PROFI-5052 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 12-channel isolated digital input with 5000Vrms field to logic isolation. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.

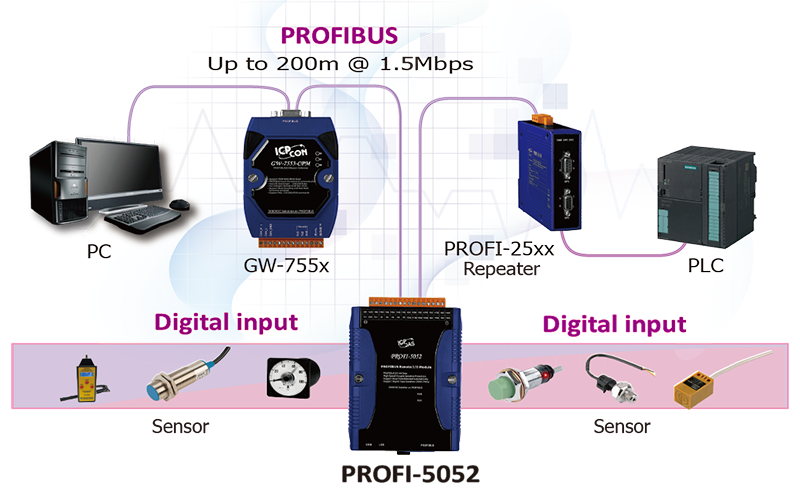

Applications

Industrial Automation
Factory Automation
Process Automation
Etc…

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES PROFI-5052 CR	DESCRIPTIONPROFIBUS Remote I/O Module (12-channel Isolated Digital Input) (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

LED Indicators
Status	PWR LED, RUN LED

Digital Input
Channels	12 Channels (Sink or Source), Isolated from each other. Off Voltage Level: +1V Max. On Voltage Level: +4 ~ +30V Input Impedance: 3KΩ in series with opto-coupler Isolation Voltage: 5000Vrms

PROFIBUS
Controller	Profichip VPCLS2
Transceiver	ADI ADM2486
Baud Rate	9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol	DP-V0
