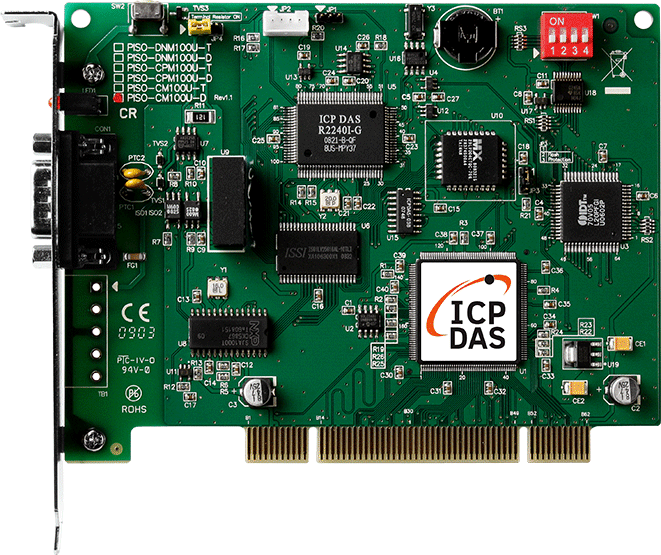

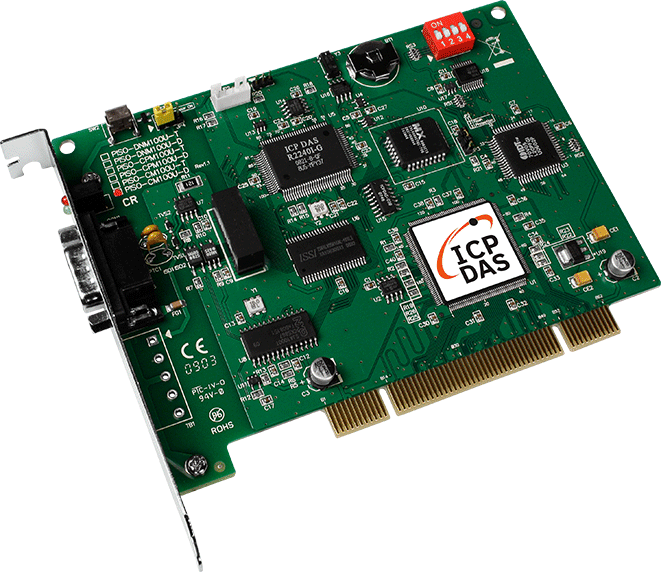

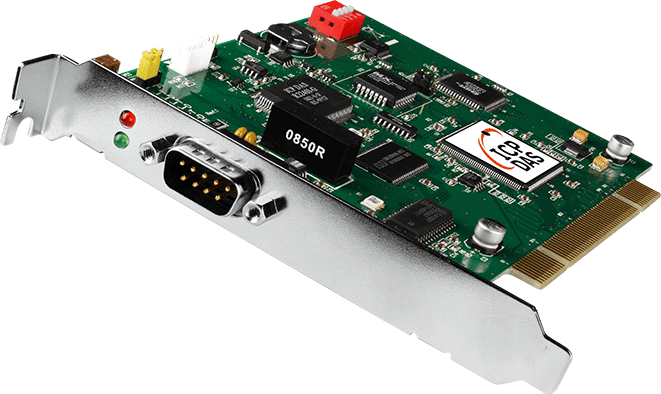

PISO-CM100U-D

1-port CAN Programmable Universal PCI Card (9-pin D-Sub Connector)
PISO-CM100U-D
PISO-CM100U-D
PISO-CM100U-D
PISO-CM100U-D
PISO-CM100U-D
PISO-CM100U-D

Features

  • Microprocessor inside with 80186, 80MHz
  • 82C250 CAN transceiver
  • SJA1000T CAN controller
  • Support both CAN 2.0A and CAN 2.0B
  • Timestamp with at least ±1ms precision
  • DIP switch to select board number
  • Dual port RAM communication mechanism
  • RTC (real time clock) inside
CE UKCA FCC RoHS WEEE

Introduction

The CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security. It is an especially suited for networking "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted.

ICP DAS provides an open architecture platform for CAN bus PISO-CM100/100U. The PISO-CM100/100U represents a very powerful and economic solution of an active CAN board with one CAN channels, covering a wide range of CAN applications. The 16-bit on-board microcontroller allows, among many other features, the filtering, preprocessing, and storage (with timestamp) of CAN messages as well as the real-time transmission of CAN messages. PISO-CM100/100U also uses the new Phillips SJA1000T and Transceiver 82C250/251, which provide bus arbitration and error detection with auto correction and re-transmission function. Under the effect of the powerful microcontroller, this card can be made for one CAN controller without losing data, even in systems with a high bus load. Besides, equipped with integrated intelligence functions, the PISO-CM100/100U makes it is possible to preprocess CAN data streams, thus relieving the PC of a considerable burden. As a result, real-time requirements on the PC applications are drastically reduced. Due to the state-of-the-art, it can be installed in a slot of 32-bits PCI bus or Universal PCI bus and supported truly “Plug & play” technology.

In addition, users can develop their own CAN application by using the PISO-CM100/100U library. When the PISO-CM100/100U is active, the data exchange between users’ application and can bus firmware is performed via the memory mapping method of the PISO-CM100/100U.

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES PISO-CM100U-D     CR DESCRIPTION1-port Programmable CAN Universal PCI Card with 9-Pin D-sub Connector (RoHS)
This combination include other products.

Similar Products

Software
Driver Windows XP/7/8/10 (32-bit/64-bit OS), InduSoft
SDK VB 6.0, VC++ 6.0, BCB 6.0, Delphi 4.0, C# 2008
CPU Module
CPU 80186, 80 MHz or compatible
EEPROM 16 KB
Flash 512 KB
NVRAM 31 bytes (battery backup, data valid for up to 10 years)
SRAM 512 KB
Real Time Clock Yes
LED Indicators
Status 1 x CAN status
1 x Operating mode
PC Bus
Type Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, plug and play
Board No. By DIP switch
CAN
Controller NXP SJA1000T with 16 MHz clock
Ports 1
Baud Rate 10 k ~ 1 M bps
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor Jumper for 120 Ω terminal resistor
Power
Consumption 300 mA @ 5 V
Mechanical
Dimensions (mm) 138 x 22 x 105 (W x L x H)
Environment
Operating Temperature 0 ~ +60 °C
Storage Temperature -20 ~ +70 °C
Humidity 5 ~ 85% RH, Non-condensing

Hardware Architecture


Software Architecture





Performance Test

Test development:
OS:Windows XP SP 3
CPU:Intel Core 2 Duo 2.00 GHz
RAM:512 MB
Baud Rate(bps) CAN 2.0 A CAN 2.0 B
Frame per sec. Frame per sec.
1000 k 7502 6589
800 k 6188 5258
500 k 4097 3451
250 k 2140 1801
125 k 1098 920
50 k 440 371
20 k 176 148
10 k 88 74

Note:The test result is the average value of receiving 100000 CAN messages
