PISO-730U

Universal PCI, 32-ch Isolated Digital I/O and 32-ch TTL Digital I/O Board (Current Sinking, NPN)

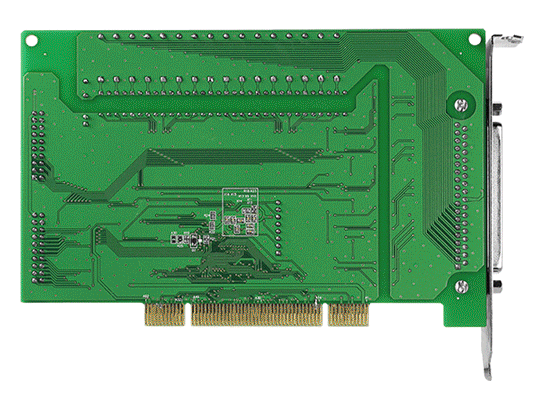

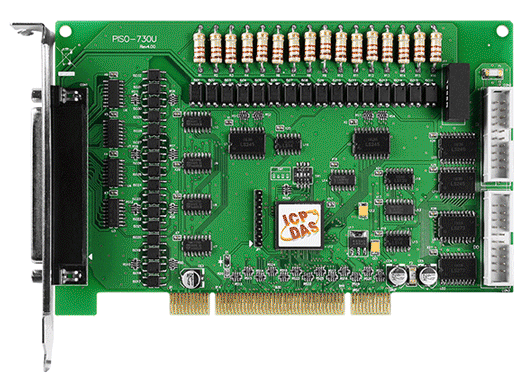

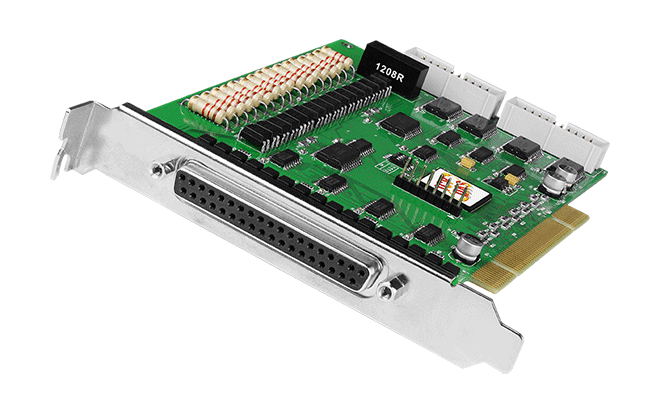

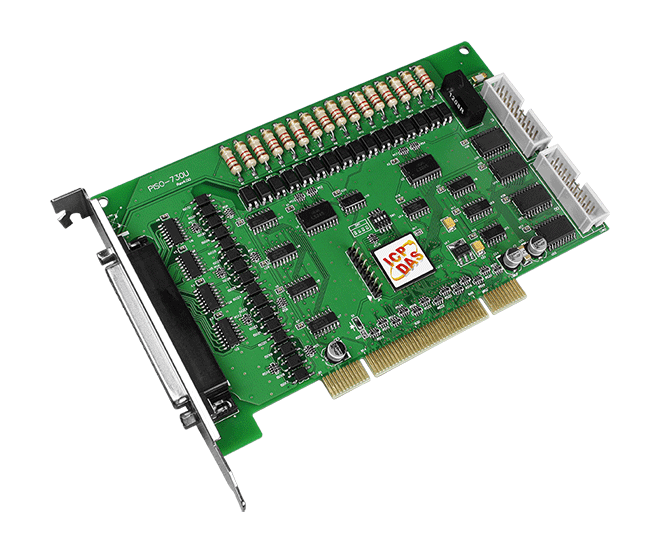

PISO-730U
PISO-730U
PISO-730U
PISO-730U
PISO-730U
PISO-730U
PISO-730U
PISO-730U

Features

  • Universal PCI (3.3 V/5 V) Interface
  • 16-channel Optically-isolated Digital Input
  • 16-channel Optically-isolated Digital Output (Sink, NPN)
  • 16-channel 5 V/TTL Digital Output
  • 16-channel 5 V/TTL Digital Input
  • Built-in DC/DC Converter with 3000 VDC Isolation
  • 3750 Vrms Photo-isolation Protection
  • Supports Card ID (SMD Switch)
  • Supports DO Status Readback (Register Level)
  • 2 Interrupt Sources
CE UKCA FCC RoHS WEEE

Introduction

The PISO-730U universal PCI card supports 3.3 V/5 V PCI bus. PISO-730U cards provide 32 isolated digital I/O channels (16 x DI and 16 x DO) and 32 TTL-level digital I/O channels (16 x DI and 16 x DO). Both the isolated DI and DO channels use a short optical transmission path to transfer an electronic signal between the elements of a circuit and keep them electrically isolated. With 3750 Vrms isolation protection, these DIO channels allow the input signals to be completely floated so as to prevent ground loops and isolate the host computer from damaging voltages. Each DO offers a Darlington (NPN) transistor and integrated suppression diode for the inductive load. The open collector outputs (DO channels) are typically used for alarm and warning notification, signal output control, control for external circuits that require a higher voltage level, and signal transmission applications, etc.

PISO-730U cards also add a Card ID switch on-board. Users can set Card ID and then recognize the board by the ID via software when using two or more cards in one computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

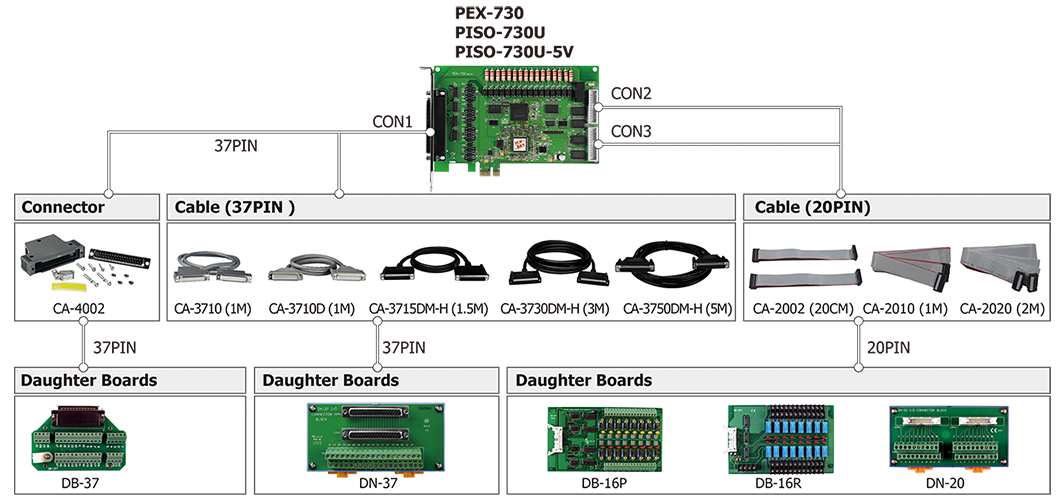

Accessories

Applications

  • Factory automation
  • Product test
  • Laboratory automation

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES PISO-730U     CR DESCRIPTIONUniversal PCI, 32-ch Isolated Digital I/O and 32-ch TTL Digital I/O Board (Sink, NPN) (RoHS)
Includes one CA-4002 D-Sub connector
This combination include other products.

Similar Products

Hardware
Card ID Yes (4-bit)
Connector Female DB37 x 1
20-pin box header x 2
Digital Input
Channels 16 (Isolated) + 16 (Non-isolated)
Type Wet Contact
Isolated: Photocoupler
Non-isolated: 5V/TTL
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level Wet: 9 ~ 24 V (Min. 7 V; Max. 30 V)
TTL: 2.0 V Min.
OFF Voltage Level Wet: 0 ~ 1 V
TTL: 0.8 V Max.
Response Speed 4 kHz (Typical) (Isolated)
1.0 MHz (Typical) (Non-isolate)
Trigger Mode Static Update
Isolation 3750 Vrms (Isolated)
Digital Output
Channels 16 (Isolated) + 16 (Non-isolated )
Type Isolated: Open Collector
Non-isolated: 5V/TTL
Sink/Source (NPN/PNP) Sink (NPN)
Operation Mode Static Update
Load Voltage Non-isolated:
Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Load Current +30 V for each channel @ 100% duty (Isolated)
Sink: 2.4 mA @ 0.8 V (Non-isolated)
Source: 0.8 mA @ 2.0 V (Non-isolated)
Response Speed 4 kHz (Typical) (Isolated)
1.0 MHz (Typical) (Non-isolate)
Isolation 3750 Vrms (Isolated)
PC Bus
Type 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 8-bit
Power
Consumption 600 mA @ +5 V
Mechanical
Dimensions (mm) 105 x 180 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing
