PISO-1730U
Universal PCI, 32-ch Isolated DI and 32-ch Open Collector Isolated (Sink, NPN) DO Board
Features
- Universal PCI (3.3 V/5 V) Interface
- 32 Optically-isolated Digital Input Channels
- 32 Optically-isolated Digital Output Channels (Sink, NPN)
- Built-in DC/DC Converter with 3000 VDC Isolation
- 3750 Vrms Photo-isolation Protection
- Four Isolated Banks
- Supports Card ID (SMD Switch)
Introduction
The PISO-1730U universal PCI card supports 3.3 V/5 V PCI bus.The PISO-1730U provides 32 channels of Isolated DIs and 32 channels of Isolated DOs, arranged into four isolated banks. Each input channel uses a photo-coupler input. Each DO offers a Darlington transistor. The power supply of the output port and input port should use the external power. The board eliminates ground-loop problems and isolates the host computer from damaging voltages.
The PISO-1730U provides a Card ID switch. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PIO-1730U cards in one computer.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
The PISO-1730U provides a Card ID switch. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PIO-1730U cards in one computer.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

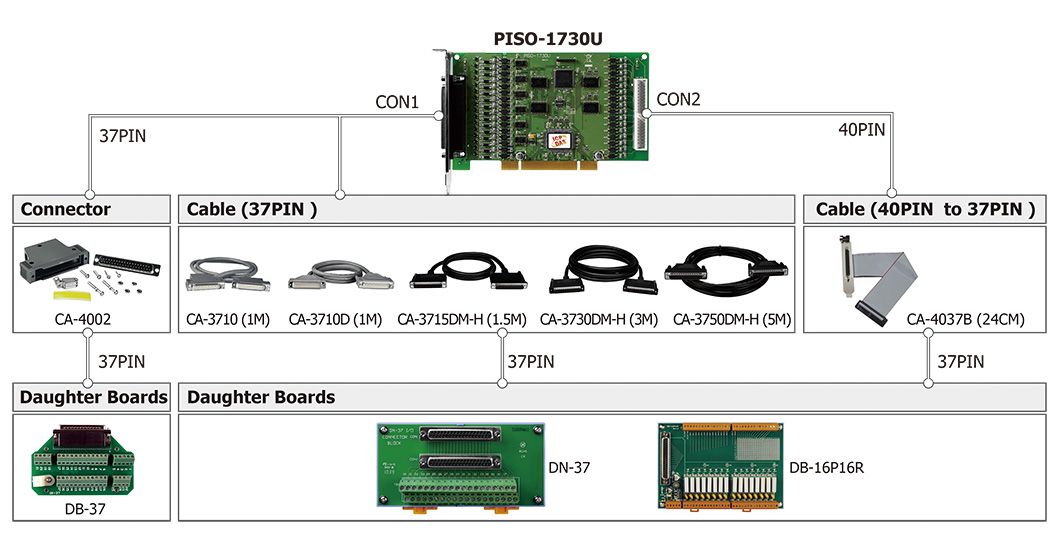

Accessories
Applications
- Factory automation
- Product test
- Laboratory automation
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Hardware | |
|---|---|
| Card ID | Yes (4-bit) |
| Connector | Female DB37 x 1 40-pin box header x 1 |
| Digital Input | |
|---|---|
| Channels | 32 |
| Type | Wet Contact Photocoupler |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | 9 ~ 24 V (Min. 7 V; Max. 30 V) |
| OFF Voltage Level | 0 ~ 1 V |
| Response Speed | 4 kHz (Typical) |
| Trigger Mode | Static Update |
| Isolation | 3750 Vrms (Using external power) |
| Digital Output | |
|---|---|
| Channels | 32 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Operation Mode | Static Update |
| Load Current | 100 mA/+30 V for each channel @ 100% duty |
| Response Speed | 4 kHz (Typical) |
| Isolation | 3750 Vrms |
| PC Bus | |
|---|---|
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
|---|---|
| Consumption | 600 mA @ +5 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 105 x 180 x 22 (W x L x D) |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
