PIO-D96U

Universal PCI, 96-ch Digital I/O Board

Features

Universal PCI (3.3 V/5 V) Interface
96-channel Digital I/O
Twelve 8-bit Bi-directional Programmable I/O Ports
All I/O Lines Buffered on the Board
4-channel Interrupt Source
Buffer Output for Higher Driving Capability
Supports Card ID (SMD Switch)
DI/O Response Time approximately 1 μs (1 MHz)

Introduction

The PIO-D96U supports 3.3 V/5 V PCI bus. These cards provide 96 TTL Digital I/O lines that consist of twelve 8-bit bi-directional ports. Each group of three 8-bit ports is arranged on the connector as Port A (PA), Port B (PB) and Port C (PC), respectively, and all ports are configured as inputs ports on power-up or after a reset.

The PIO-D96U provides four connectors for I/O wiring. The PIO-D96U cards include an onboard Card ID switch that enables the board to be recognized via software if two or more boards are installed in the same computer.

The pull-high/low jumpers allow the DI status to be predefined instead of remaining floating if the DI channels are disconnected or interrupted.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

Comparison Table
Model	Interface	DI Pull-High/Low	Compatibility	Advantage
PEX-D96S	PCI Express	Yes	5 V/CMOS	Low power consumption、 Low temperature
PIO-D96SU	Universal PCI	Yes	5 V/CMOS	Low power consumption、 Low temperature
PIO-D96U	Universal PCI	Yes	5 V/TTL	High DO Driving (Output Capability)

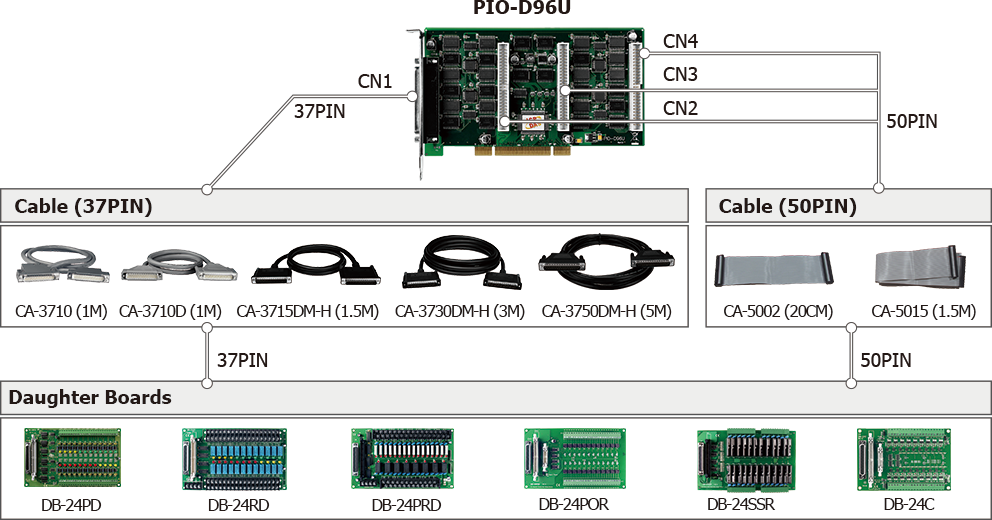

Accessories

Applications

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES PIO-D96U CR	DESCRIPTIONUniversal PCI, 96-ch Digital I/O Board (RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Hardware
Card ID	Yes (4-bit)
Connector	Female DB37 x 1 50-pin box header x 3

Digital Input
Channels	96 (Bi-Direction)
Type	5 V/TTL
ON Voltage Level	2.0 V Min.
OFF Voltage Level	0.8 V Max.
Response Speed	1.0 MHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	96 (Bi-Direction)
Type	5 V/TTL
Operation Mode	Static Update
Load Voltage	Logic 0: 0.1 V Max. Logic 1: 2.4 V Min.
Load Current	Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V
Response Speed	1 MHz (Typical)
