PIO-D168U
Universal PCI, 168-ch Digital I/O Board
Features
- Universal PCI (3.3 V/5 V) Interface
- 168 Digital I/O Channels
- 21 8-bit Bi-directional Programmable I/O Ports
- Emulates 6/7 Industrial-standard 8255 PPI Ports (Mode 0)
- All I/O Lines Buffered on the Board
- 4-channel Interrupt Source
- Supports Card ID (SMD Switch)
- Supports DO Status Readback (Register Level)
- DI/O Response Time approximately 1 μs (1 MHz)
Introduction
The PIO-D168U universal PCI card supports 3.3 V/5 V PCI bus. These cards provide 168 TTL digital I/O lines, and these lines are grouped into eighteen 8-bit bi-direction ports. Every three ports on a connector are grouped and named as port A (PA), port B (PB) and port C (PC) respectively. All ports are configured as inputs upon power-up or reset.
The PIO-D168U also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more PIO-D168U cards in one computer.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

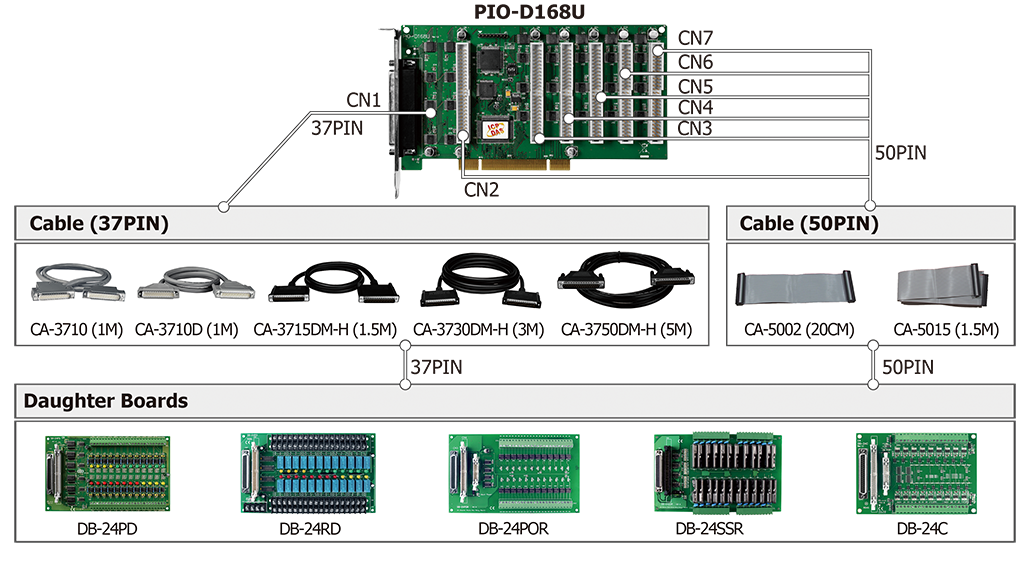

Accessories
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Hardware | |
|---|---|
| Card ID | Yes (4-bit) |
| Connector | Female DB37 x 1 50-pin box header x 6 |
| Digital Input | |
|---|---|
| Channels | 168 (Bi-Direction) |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 500 kHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
|---|---|
| Channels | 168 (Bi-Direction) |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Load Current | Sink: 64 mA @ 0.8 V Source: 32 mA @ 2.0 V |
| Response Speed | 500 kHz (Typical) |
| PC Bus | |
|---|---|
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
|---|---|
| Consumption | 1300 mA @ +5 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 105 x 200 x 22 (W x L x D) |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
