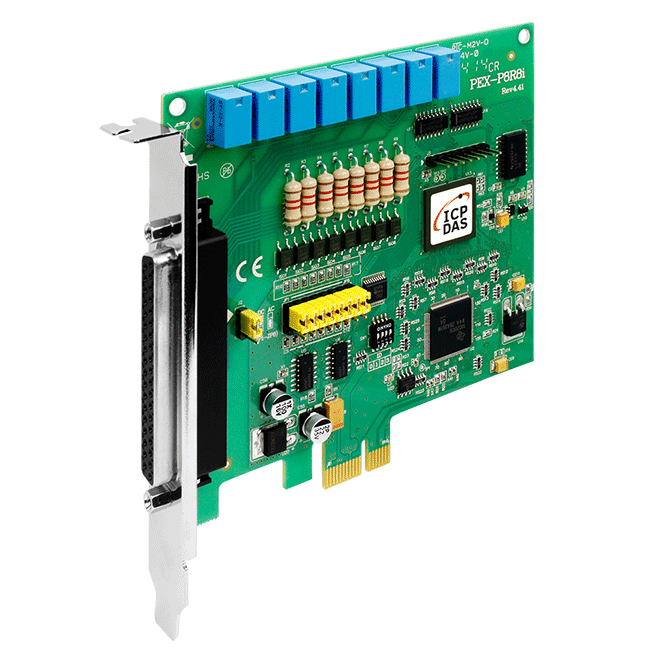

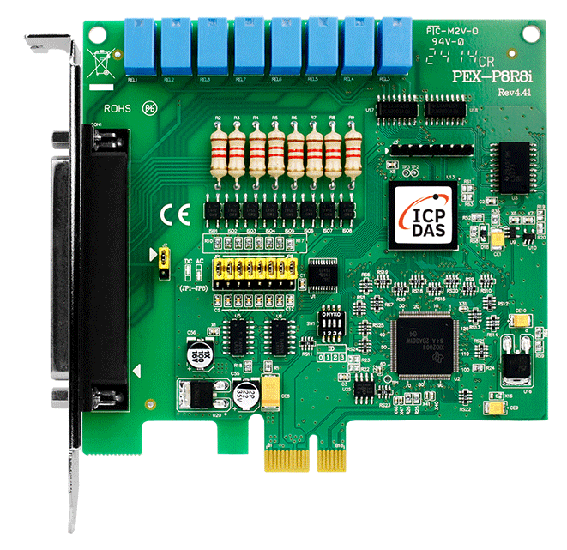

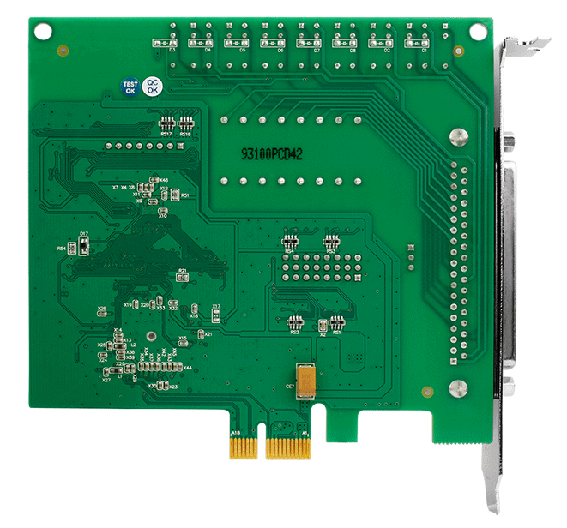

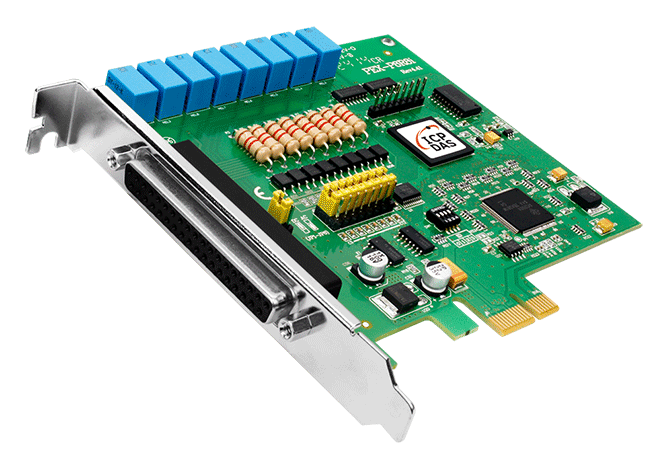

PEX-P8R8i
PCI Express, 8-ch Isolated DI, 8-ch Relay Output Board
Features
- PCI Express x1 Interface
- Supports Card ID (SMD Switch)
- 8-channel Relay Output
- 8-channel Isolated Digital Input
- Selectable DC Signal Input Filter
- AC Signal Input with Filter
- 3750 Vrms Photo-isolation Protection
Introduction
The PEX-P8R8i board utilizes the PCI Express bus and is designed as an easy replacement for the PISO-P16R16U board without requiring any modification to either the software or the driver.
The PEX-P8R8i board provides 8 photocoupler Digital Input channels with 3750 Vrms isolation protection, and allows the input signals to be completely floated to prevent ground loops. The boards are also equipped with 8 Relay Output channels that can be used for controlling the ON/OFF state of external devices, for driving external relays or small power switches, or for activating alarms, etc.
The PEX-P8R8i board provides 8 photocoupler Digital Input channels with 3750 Vrms isolation protection, and allows the input signals to be completely floated to prevent ground loops. The boards are also equipped with 8 Relay Output channels that can be used for controlling the ON/OFF state of external devices, for driving external relays or small power switches, or for activating alarms, etc.
Comparsion
| Model Name | PCI-P16R16U | PISO-P16R16U | PEX-P16R16i | PEX-P8R8i |
|---|---|---|---|---|
| Bus | Universal PCI | Universal PCI | PCI Express x1 | |
| Relays | Form C x 8 Form A x 8 |
Form C x 4 Form A x 4 |
||
| DI | 16-ch with 5000 Vrms Isolation |
16-ch with 3750 Vrms Isolation |
8-ch with 3750 Vrms Isolation |
|
| Card ID | - | Yes (4-bit) | ||
| Data bus | 16-bit | 8-bit | ||
| Driver | UniDAQ SDK/Driver, or PCI-P16R16 SDK/Driver |
UniDAQ SDK/Driver, or PISO-DIO SDK/Driver | ||
| Remarks | - | Suggested for new users. | ||
Accessories
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Hardware | |
|---|---|
| Card ID | Yes (4-bit) |
| Connector | Female DB37 x 1 |
| Digital Input | |
|---|---|
| Channels | 8 |
| Type | Wet Contact Photocoupler |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz) |
| OFF Voltage Level | AC/DC 0 ~ 1 V |
| Response Speed | Without Filter: 50 kHz (Typical) With Filter: 0.455 kHz(Typical) |
| Trigger Mode | Static Update |
| Isolation | 3750 Vrms |
| Relay Output | |
|---|---|
| Channels | 8 |
| Type | 4 SPDT, 4 SPST |
| Contact Rating | AC:120 V@0.5 A DC: 24 V@1 A |
| Operate Time | 1 ms (typical) |
| Release Time | 7 ms (typical) |
| Electrical Endurance | 100,000 ops. |
| Mechanical Endurance | 5,000,000 ops. |
| PC Bus | |
|---|---|
| Type | PCI-Express x 1 |
| Data Bus | 8-bit |
| Power | |
|---|---|
| Consumption | 450 mA @ +3.3 V 200 mA @ +12 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 112 x 115 x 22 (W x L x D) |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
