PEX-D96S

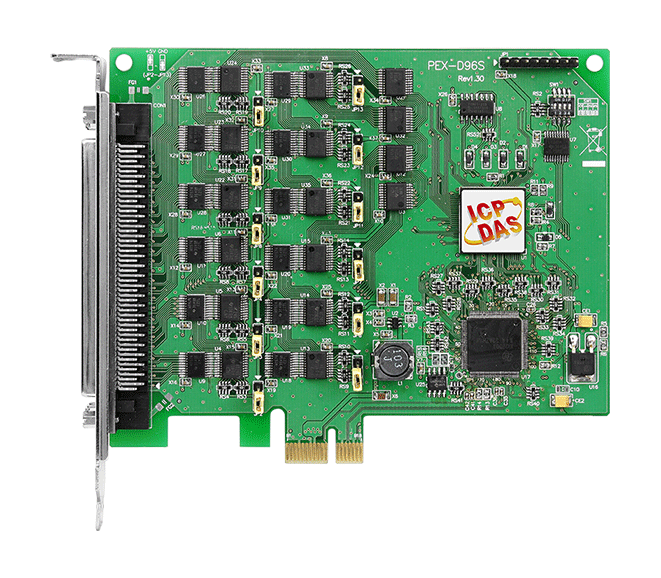

PCI Express, 96-ch Digital I/O Board
PEX-D96S
PEX-D96S

Features

  • PCI Express x1 Interface
  • Supports Card ID (SMD Switch)
  • DI/O Response Time approximately 2 μs (500 kHz Max.)
  • DO Provides Higher Driving Capability
  • 96 Buffered CMOS Digital Input/Output Lines
  • Twelve/Eighteen 8-bit Bi-directional I/O Ports
  • Four Interrupt Sources
  • Pull-high/Pull-low Jumpers for DI Channels
CE UKCA FCC RoHS WEEE

Introduction


The PEX-D96S supports PCI Express bus. These cards provide 96 TTL Digital I/O lines that consist of twelve 8-bit bi-directional ports. Each group of three 8-bit ports is arranged on the connector as Port A (PA), Port B (PB) and Port C (PC), respectively, and all ports are configured as inputs ports on power-up or after a reset.

The PEX-D96S provides a single high-density connector that reduces the amount of installation space required for the card in the computer. The PEX-D96S cards include an onboard Card ID switch that enables the board to be recognized via software if two or more boards are installed in the same computer. The pull-high/low jumpers allow the DI status to be predefined instead of remaining floating if the DI channels are disconnected or interrupted.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.


Comparison Table

Model Interface DI Pull-High/Low Compatibility Advantage
PEX-D96S PCI Express Yes 5 V/CMOS Low power consumption、
Low temperature
PIO-D96SU Universal PCI Yes 5 V/CMOS Low power consumption、
Low temperature
PIO-D96U Universal PCI Yes 5 V/TTL High DO Driving
(Output Capability)

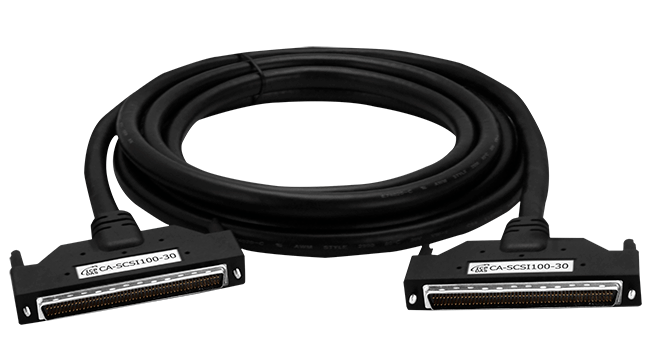

Accessories


Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES PEX-D96S     CR DESCRIPTIONPCI Express, 96-ch Digital I/O Board (SCSI II Connector) (RoHS)
This combination include other products.

Similar Products

Hardware
Card ID Yes (4-bit)
Connector Female SCSI II 100-pin x 1
Digital Input
Channels 96 (Bi-Direction)
Type 5 V/CMOS
ON Voltage Level 2.0 V Min.
OFF Voltage Level 0.8 V Max.
Response Speed 500 kHz (Typical)
Trigger Mode Static Update
Digital Output
Channels 96 (Bi-Direction)
Type 5 V/CMOS
Operation Mode Static Update
Load Voltage Logic 0: 0.1 V Max.
Logic 1: 4.4 V Min.
Load Current Sink: 6 mA @ 0.33 V
Source: 6 mA @ 4.77 V
Response Speed 500 kHz (Typical)
PC Bus
Type PCI Express x 1
Data Bus 8-bit
Power
Consumption 650 mA @ +3.3 V
0 mA @ +12 V
Mechanical
Dimensions (mm) 95 x 130 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing
