PEX-D64

PCI Express, 64-ch Digital I/O Board with Timer/Counter
http://www.icpdas.com/web/product/download/pc_boards/document/data_sheet/PEX-D64.pdf
PEX-D64
http://www.icpdas.com/web/product/download/pc_boards/document/data_sheet/PEX-D64.pdf
PEX-D64

Features

  • Supports PCI Express x1
  • 64 channels of digital I/O
  • One 32-bit programmable internal timer
  • One 16-bit event counter
  • Card ID Function(SMD Switch)
  • One 16-bit counter and One 32-bit counter with 4 MHz time base
  • 3 independent programmable 16-bit down counter
  • Interrupt trigger by : Even/Timer trigger
CE UKCA FCC RoHS WEEE

Introduction

The PEX-D64 supports PCI Express bus. These cards provide 32-ch DI and 32-ch DO that consist of two 16-bit input ports and two 16-bit output ports. The PEX-D64 offer 6-ch counter/timer with four-clock sources, 2 MHz, 1 MHz, 500 kHz and 250 kHz. The user can use the clock source from the soldering pad. 3 of the 6-ch timer/ counter are for general purposes such as frequency measurement, event counting and pulse generation; the other 3 channels are for interrupt function.

The PEX-D64 has a Card ID switch with which users can recognize the board by the ID via software when using two or more PEX-D64 cards in one computer.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

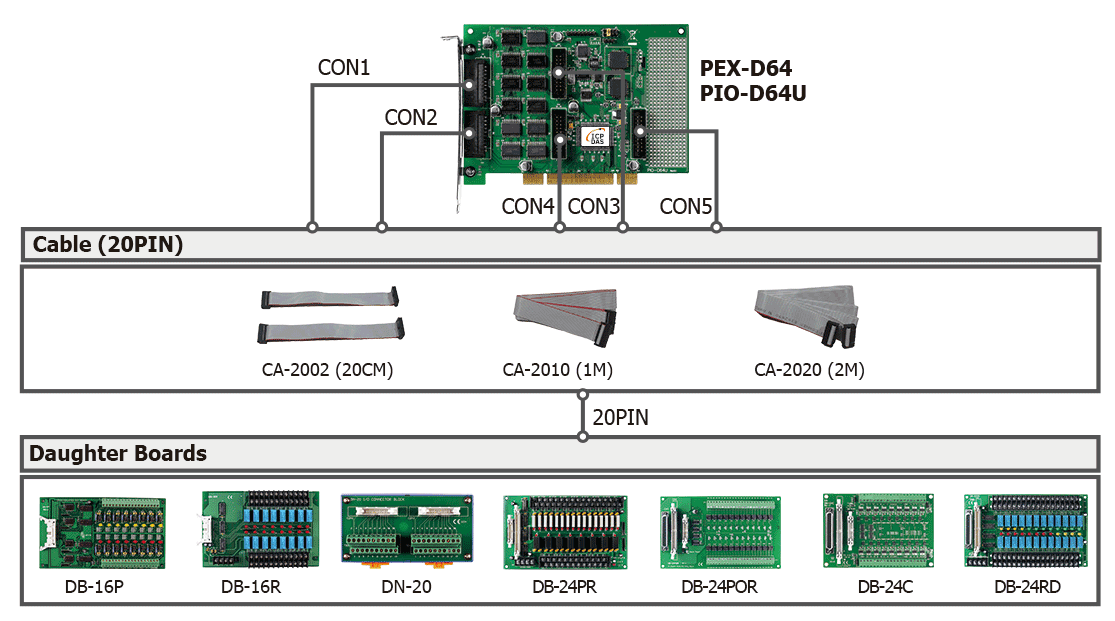

Accessories

Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES PEX-D64     CR DESCRIPTIONPCI Express, 64-ch Digital I/O Board with Timer/Counter (RoHS)
This combination include other products.

Similar Products

Hardware
Card ID Yes (4-bit)
Connector 20-pin box header x 5
Digital Input
Channels 32
Type 5 V/TTL
ON Voltage Level 2.0 V Min.
OFF Voltage Level 0.8 V Max.
Response Speed 500 kHz (Typical)
Trigger Mode Static Update
Digital Output
Channels 32
Type 5 V/TTL
Operation Mode Static Update
Load Voltage Logic 0: 0.4 V max.
Logic 1: 2.4 V min.
Load Current Sink: 24 mA@ 0.8 V
Source: 15 mA @ 2.0 V
Response Speed 500 kHz (Typical)
Timer/Counter/Frequency
Channels 6 (Independent x 3/EVTIRQ x 1/TMRIRQ x 1/EXTIRQ x 1)
Type 5 V/TTL
Resolution 16-bit
Reference Clock Internal: 4 MHz
PC Bus
Type PCI Express x 1
Data Bus 8-bit
Power
Consumption 200 mA @ +3.3 V
180 mA @ +12 V
Mechanical
Dimensions (mm) 112 x 156 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing
