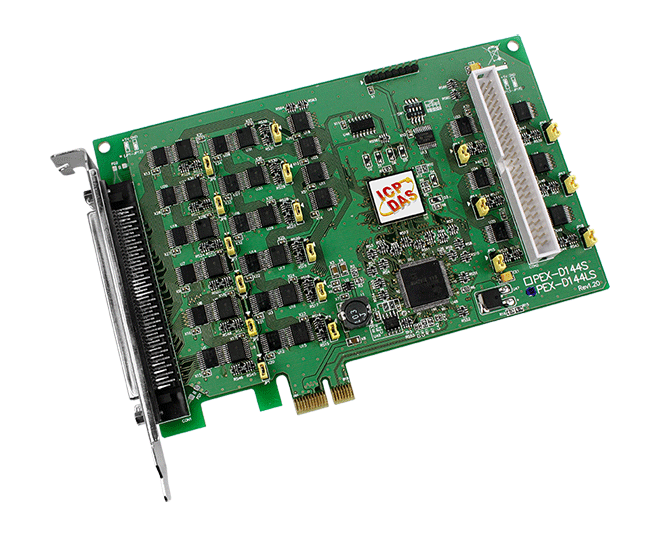

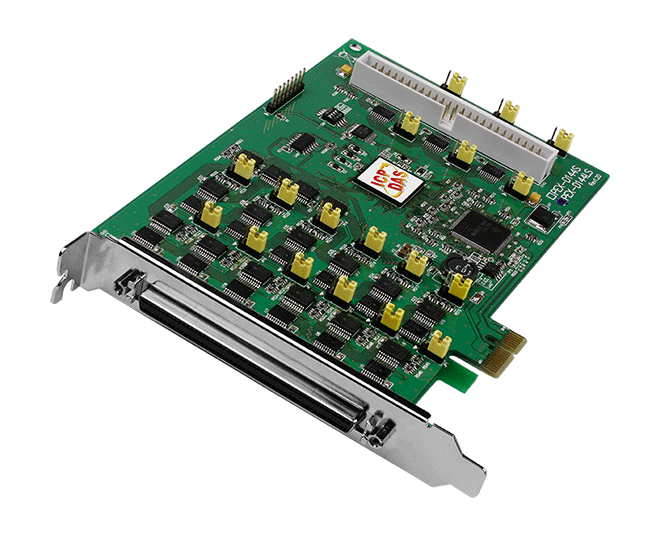

PEX-D144LS

PCI Express, 144-ch Digital I/O Board

Features

PCI Express x1 Interface
Supports Card ID (SMD Switch)
DI/O Response Time approximately 2 μs (500 kHz Max.)
DO Provides Higher Driving Capability
144 Buffered CMOS Digital Input/Output Lines
Twelve/Eighteen 8-bit Bi-directional I/O Ports
Four Interrupt Sources
Pull-high/Pull-low Jumpers for DI Channels

Introduction

The PEX-D144LS supports PCI Express bus. These cards provide 144 TTL digital I/O lines that are grouped into eighteen 8-bit bi-directional ports. Each group of three 8-bit ports is arranged on the connector as Port A (PA), Port B (PB) and Port C (PC), respectively, and all ports are configured as inputs Ports on power-up or after a reset.

The PEX-D144LS provides a high-density connector that reduces the amount of installation space required for the card in the computer. The PEX-D144LS cards include an onboard Card ID switch that enables the board to be recognized via software if two or more boards are installed in the same computer. The PEX-D144LS also adds pull-high/low jumpers allow the DI status to be predefined instead of remaining floating if the DI channels are disconnected or interrupted.

The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

Comparison Table
Model	Interface	DI Pull-High/Low	Compatibility	Advantage
PEX-D144LS	PCI Express	Yes	5 V/CMOS	Low power consumption、 Low temperature
PIO-D144LU	Universal PCI	Yes	5 V/CMOS	Low power consumption、 Low temperature
PIO-D144U	Universal PCI	No	5 V/TTL	High DO Driving (Output Capability)

Accessories

Applications

Ordering Information

PRODUCT SERIES	DESCRIPTION	QNT.	INQUIRY
PRODUCT SERIES PEX-D144LS CR	DESCRIPTIONPCI Express, 144-ch Digital I/O Board (SCSI II Connector, RoHS)

This combination include other products.

Similar Products

Available soon

Will be phased out

Phased out

Hardware
Card ID	Yes (4-bit)
Connector	Female SCSI II 100-pin x 1 50-pin box header x 1

Digital Input
Channels	144 (Bi-Direction)
Type	5 V/CMOS
ON Voltage Level	2.0 V Min.
OFF Voltage Level	0.8 V Max.
Response Speed	250 kHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	144 (Bi-Direction)
Type	5 V/CMOS
Operation Mode	Static Update
Load Voltage	Logic 0: 0.1 V Max. Logic 1: 4.4 V Min.
Load Current	Sink: 6 mA @ 0.33 V Source: 6 mA @ 4.77 V
Response Speed	250 kHz (Typical)
