PCI-P16C16U

Universal PCI, 16-ch Isolated DI and 16-ch Open Collector (Sink, NPN) DO Board
PCI-P16C16U
PCI-P16C16U

Features

  • Universal PCI (3.3 V/5 V) Interface
  • 16-channel Optically-isolated Digital Input
  • 16-channel Open-collector Digital Output (Sink, NPN)
  • External Power Status LED Indicator
  • Selectable DC Signal Input Filter
  • AC Signal Input with Filter
  • Supports Card ID (SMD Switch)
  • 5000 Vrms Photo-isolation Protection
CE UKCA FCC RoHS WEEE

Introduction

The PCI-P16C16U Universal PCI card supports the 3.3 V/5 V PCI bus and provides 16 optically-isolated Digital Input channels and 16 open-collector (Sink, NPN) Digital Output channels. The DI channels provide 5000 Vrms isolation protection that allows the input signals to be completely floated so as to prevent ground loops and isolate the host computer from potentially damaging voltage spikes. The open-collector DO channels are typically used for alarm and warning notifications, control of signal output, control of external circuits that require a higher voltage level, or signal transmission applications, etc. The PCI-P16C16U contains a single DB-37 connector and a single 40-pin box header, and includes a 40-pin to DB-37 flat cable for easy wiring.

The PCI-P16C16U cards also includes an onboard Card ID switch that enables the board to be recognized via software if two or more boards are installed in the same computer.

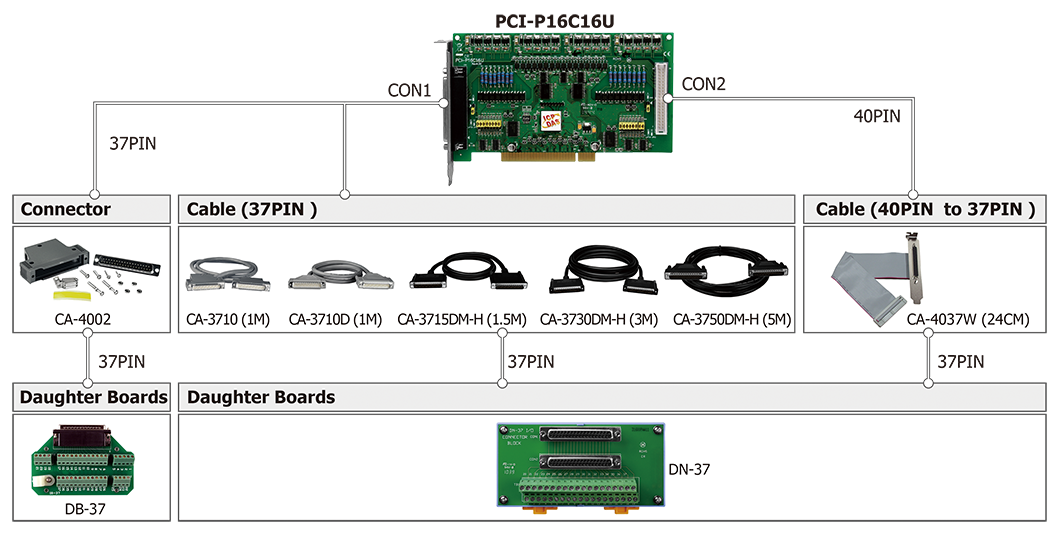

Accessories

Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES PCI-P16C16U     CR DESCRIPTIONUniversal PCI, 16-ch Isolated DI and 16-ch Open Collector (Sink, NPN) DO Board (RoHS)
Includes one CA-4037W cable and two CA-4002 D-Sub connectors
This combination include other products.

Similar Products

Hardware
Card ID Yes (4-bit)
Connector Female DB37 x 1
40-pin box header x 1
Digital Input
Channels 16
Type Wet Contact
Photocoupler
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level AC/DC 5 ~ 24 V (AC 50 ~ 1 kHz)
OFF Voltage Level AC/DC 0 ~ 1 V
Response Speed Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz (Typical)
Trigger Mode Static Update
Isolation 5000 Vrms
Digital Output
Channels 16
Type Open Collector
Sink/Source (NPN/PNP) Sink (NPN)
Operation Mode Static Update
Load Current DC: 600 mA/+30 V for one channel @ 100% duty
Response Speed 4 kHz (Typical)
Isolation 3750 Vrms
PC Bus
Type 3.3 V/5 V Universal PCI, 32-bit, 33 MHz
Data Bus 16-bit
Power
Consumption 800 mA @ +5 V
Mechanical
Dimensions (mm) 105 x 183 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing
