Universal PCI, 40 MB/s, 64-ch Digital I/O Board
Features
- Universal PCI (3.3 V/5 V) Interface
- 32-channel, 5 V/TTL Digital Output
- Data Transfer Rate up to 40 MB/s for each DMA Channel
- Onboard 1 k/2 k DWORD FIFO for DI/DO, respectively
- DO FIFO Supports Ring Buffer Mode
- No Bus Loading in Repetitive Pattern Generation Applications
- 32-channel, 5 V/TTL Digital Input
- 2-channel Bus Mastering Scatter/Gather
- 8-channel Optically-isolated Digital Input
- Data Transfer Modes:
- Direct Program Control, Internal Timer Pacer
- External Clock (DI only), Handshaking
Introduction
The PCI-D64HU is a high-speed digital I/O card containing 32 Digital Input channels and 32 Digital Output channels. The high-performance design makes this card perfect for high-speed data transfer and pattern generation applications.
The PCI-D64HU performs high-speed data transfer using a bus-mastering DMA via the 32-bit PCI bus, with a maximum data transfer rate of up to 40 MB per second. A variety of digital I/O transfer modes are supported, including direct programmed I/O control, timer pacer control, external clock mode and handshaking mode.
The PCI-D64HU also features a programmable digital filter for all input signals, including handshaking and trigger signals. The PCI-D64HU is a reliable and cost-effective interface that can be used to control any high-speed peripherals connected to your computer system.
The PCI-D64HU performs high-speed data transfer using a bus-mastering DMA via the 32-bit PCI bus, with a maximum data transfer rate of up to 40 MB per second. A variety of digital I/O transfer modes are supported, including direct programmed I/O control, timer pacer control, external clock mode and handshaking mode.
The PCI-D64HU also features a programmable digital filter for all input signals, including handshaking and trigger signals. The PCI-D64HU is a reliable and cost-effective interface that can be used to control any high-speed peripherals connected to your computer system.

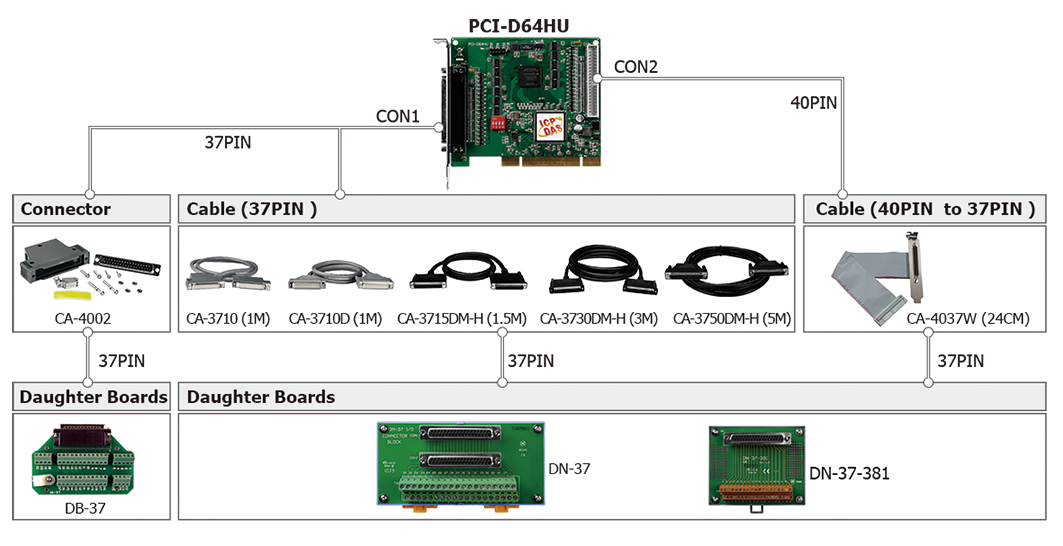

Accessories
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Hardware | |
|---|---|
| Card ID | Yes (4-bit) |

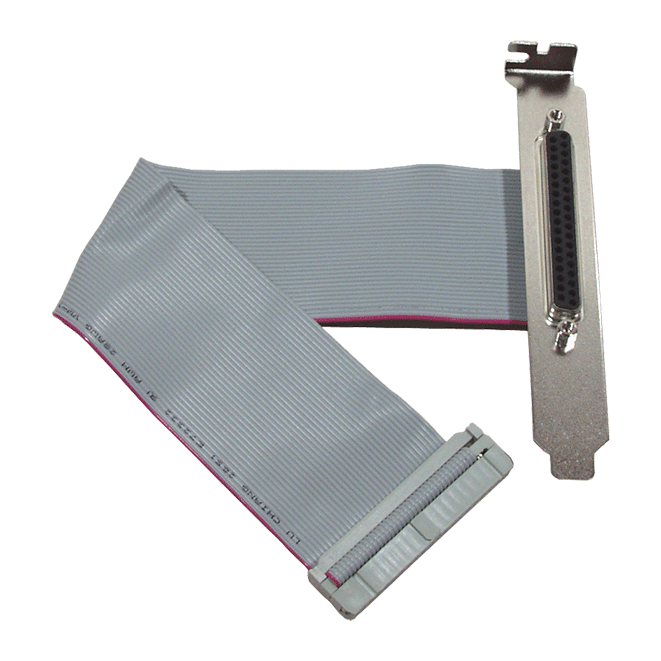

| Connector | Female DB37 x 1 40-pin Box header x 1 |
| Digital Input | |
|---|---|
| Channels | 32 |
| Type | 5 V/TTL |
| ON Voltage Level | 2.0 V Min. |
| OFF Voltage Level | 0.8 V Max. |
| Response Speed | 10.0 MHz (Max.) |
| Trigger Mode | Static Update |
| Digital Output | |
|---|---|
| Channels | 32 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Load Voltage | Logic 0: 0.55 V Max. Logic 1: 2.0 V Min. |
| Load Current | Sink: 64 mA @ 0.55 V Source: 32 mA @ 2.0 V |
| Response Speed | 10.0 MHz (Max.) |
| Timer/Counter/Frequency | |
|---|---|
| Channels | 3 |
| Resolution | 16-bit |
| Input Frequency | 2.5 ~ 20 MHz |
| PC Bus | |
|---|---|
| Type | Universal PCI, 32-bit, 33 MHz |
| Power | |
|---|---|
| Consumption | 200 mA @ +5 V typical (output no load) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 105 x 120 x 22 (W x L x D) |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
