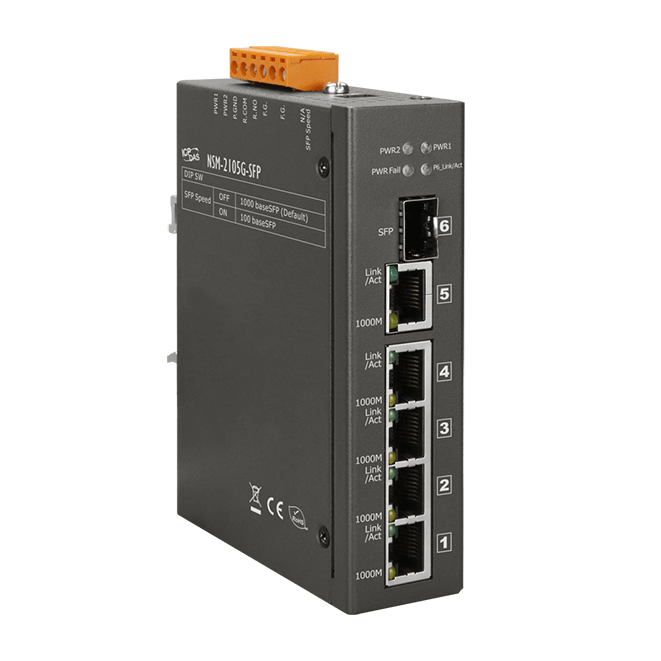

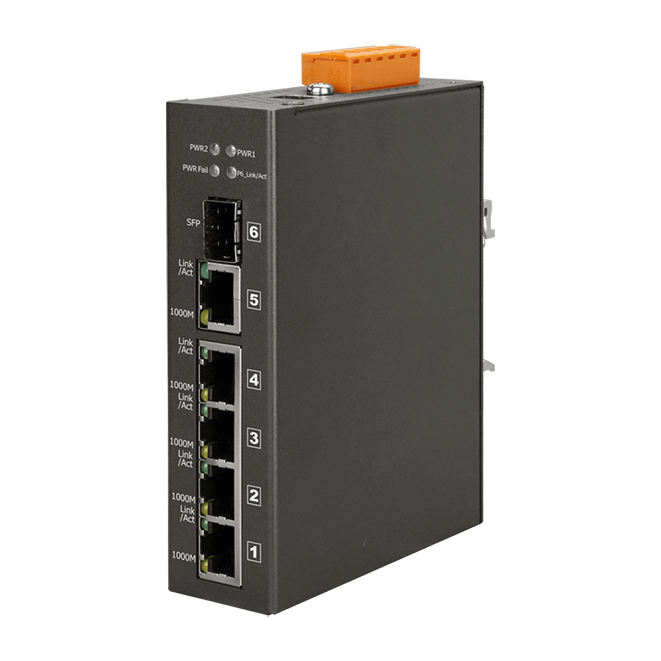

NSM-2105G-SFP
Unmanaged 5 Port GbE switch with 1 SFP slot
Features
• 1x 100/1000 SFP socket for Easy and Flexible Fiber Expansion.
• Supports Dual +12 ~ 48 VDC power input and 1 Power loss alarm relay output
Introduction
The NSM-2105G-SFP is 5 Port GbE copper and 1 100/1000 base SFP Ethernet Switch, supports Auto Negotiation, Auto MDI/MDI-X and Jumbo Frame suitable for use in various industrial applications.
NSM-2105G-SFP has Redundant Power Function, which can input 2 sets of 12~48Vdc power supply at the same time. When one of the power supplies is abnormal, it will trigger the Alarm Relay to drive the external sound and light alarm to reduce the time cost of maintenance
NSM-2105G-SFP has Redundant Power Function, which can input 2 sets of 12~48Vdc power supply at the same time. When one of the power supplies is abnormal, it will trigger the Alarm Relay to drive the external sound and light alarm to reduce the time cost of maintenance
Applications
Factory automation
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ± 2 kV |
| ESD (IEC 61000-4-2) | ± 4 kV Contact |

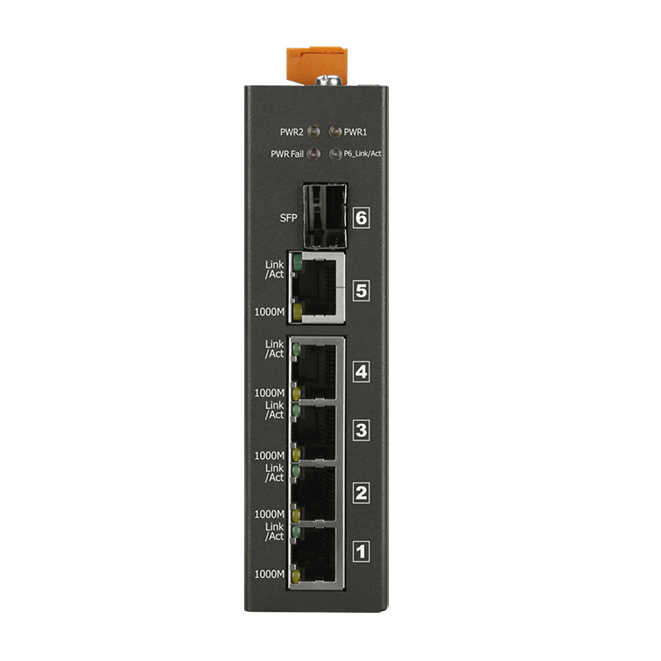

| LED Indicators | |
|---|---|
| Status | PWR1, PWR2, PWR Fail, Link/Act, 1000M, |
| Ethernet | |
|---|---|
| Ports | 5 x RJ-45, 10/100/1000BaseT(X), 1 x SFP Slot, 100/1000Base-T(X) |
| Standards | IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX & 100Base-FX IEEE 802.3ab for 1000Base-T, IEEE 802.3z for 1000BaseSX/LX IEEE 802.3x for Flow Control |
| Processing Type | Store & forward |
| MAC Table | 4 K |
| Frame Buffer Memory | 1.5 Mbit |
| Jumbo Frames | 10 K for Speed 1000 M |

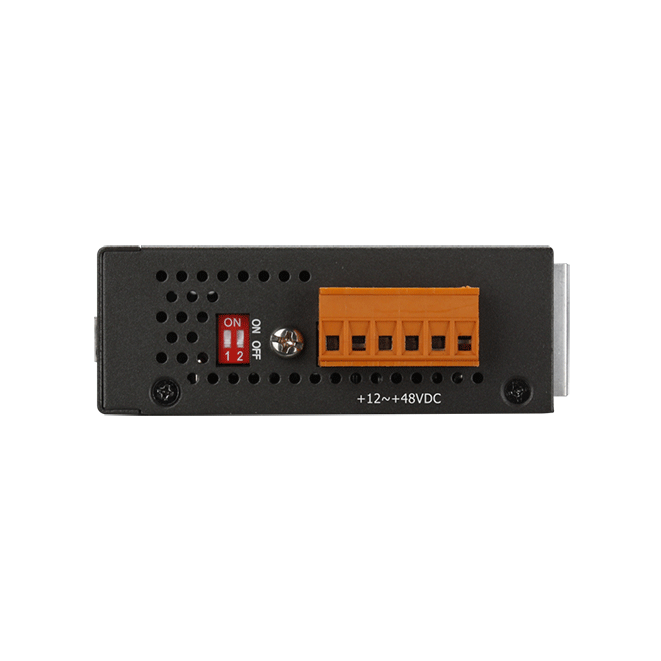

| DIP Switch | 100 /1000 SFP setting |
| Fiber | |
|---|---|
| Ports | 1 x 100/1000 Mbps SFP slots |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +12 VDC ~ +48 VDC (Non-isolation) |
| Redundant Power Inputs | Yes |
| Consumption | 0.20A @ 24VDC |
| Alarm Output | Yes, Relay 1 A @ 30 VDC |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | DIN-rail mounting: 33 x 131 x 100 (W x L x H) Wall mounting: 33 x 170 x 93 (W x L x H) |
| Installation | DIN-rail mounting or wall mounting (optional) |
| Ingress Protection Rating | IP30 |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
