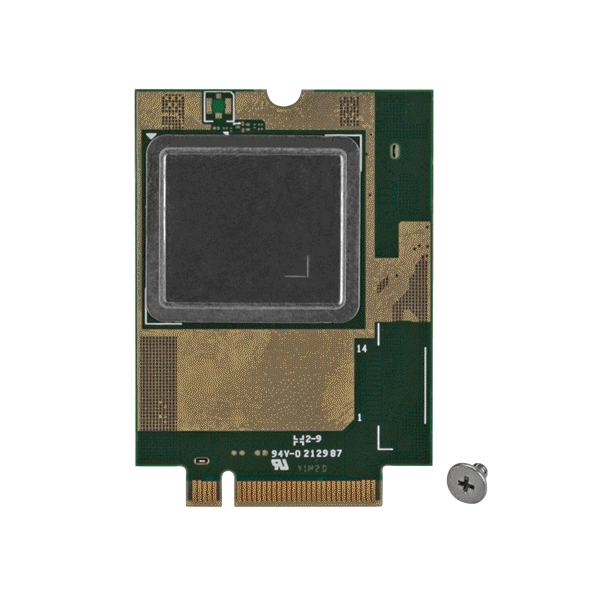

MV31-W
Ultra High-Speed 5G with LTE and 3G Fallback Modem Card
Features
- Sub 6 GHZ operation support
- Global 5G coverage on one single SKU
- Compact standard 30x42 M.2 with PCIe3.0
- Region of Production : China
Introduction
The MV31-W IoT modem card delivers ultra high-speed 5G enhanced mobile broadband (eMBB) for performance IoT applications such as industrial routers and gateways, digital signage, industrial computers and tablets in both Stand Alone (SA) and None Stand Alone (NSA) modes. It enables blistering fast data speeds of multiple gigabit per second transmission capability in both downlink and uplink plus-fallback to 4G LTE and 3G networks. It also provides excellent global coverage in both urban areas and regions where 5G is still emerging.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| 3G System | |
|---|---|
| Frequency Band | FDD Bands: 1, 2, 4, 5, 6, 8, 9, 19 |
| 4G System | |
|---|---|
| Frequency Band | FDD-LTE Bands: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 66, 71 TD-LTE Bands: 34, 38, 39, 40, 41, 42, 46 (LAA),48 (CBRS) |
| 5G System | |
|---|---|
| Frequency Band | FR1 FDD-LTE Bands: n1, n2, n3, n5, n7, n8, n12, n20, n28, n66, n71 FR1 TD-LTE Bands: n38, n41, n77, n78, n79 |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30.0 x 42.0 x 2.5 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -30°C ~ +70°C |
| Storage Temperature | -30°C ~ +85°C |
