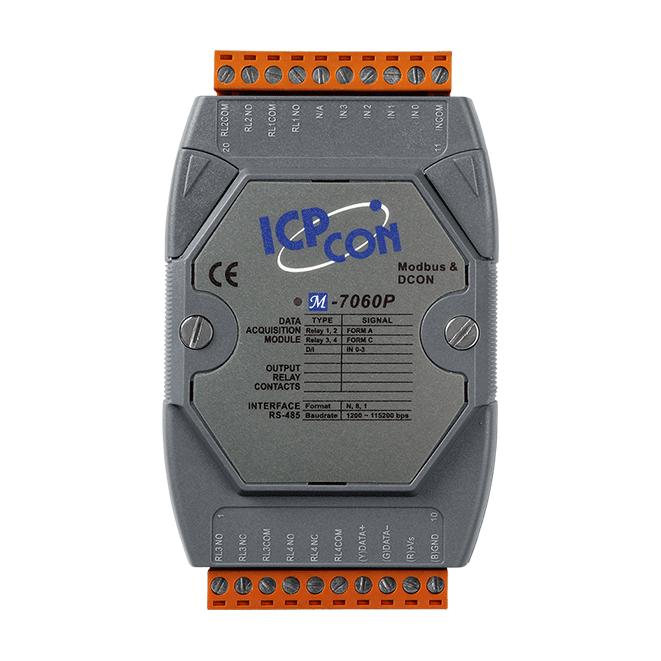

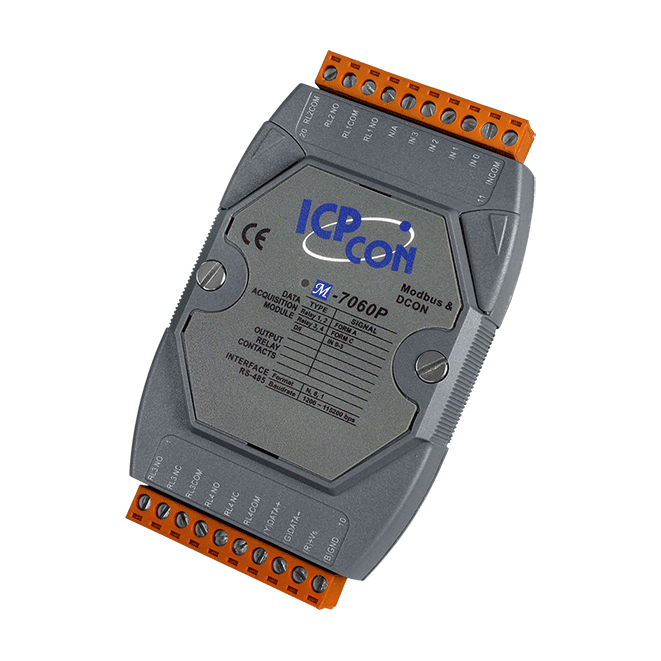

M-7060P-G

4-ch Isolated (Wet, 10~50 VDC) DI and 4-ch Power Relay Module
M-7060P-G
M-7060P-G
M-7060P-G
M-7060P-G

Features

  • 4 Sink- or Source-type Digital Inputs
  • 2 Form A and 2 Form C Power Relay Outputs
  • Digital Input Channels Can be Used as 16-bit Counters
  • Configurable Power-on Value and Safe Value Settings
  • Built-in Dual Watchdog
CE UKCA FCC RoHS WEEE

Introduction

The M-7060/M-7060D provides 4 digital input channels, 2 Form A and 2 Form C signal relay output channels, while The M-7060P/M-7060PD provides 4 digital input channels, 2 Form A and 2 Form C power relay output channels. All digital input channels are also able to be used as 16-bit counters. In addition, the digital input channels can be selected either as sink- or source-type via wire connections. The M-7060D/PD provides eight LED indicators for channel status monitoring.

The M-7060(D)/M-7060P(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments. The M-7060(D) is the ideal solution for small signal-switching applications, while The M-7060P(D) is the perfect solution for high-power applications.

Applications


• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES M-7060P-G     CR DESCRIPTION4-ch Isolated (Wet, 10~50 VDC) DI and 4-ch Power Relay Module using DCON and Modbus Protocols (Gray Cover) (RoHS)
This combination include other products.

Similar Products

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3750 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
Surge (IEC 61000-4-5) ±3 kV for Power Line
LED Indicators
Status 1 x Power and Communication
Digital Input/Counter
Channels 4
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level +4 VDC Max.
OFF Voltage Level +10 ~ +50 VDC
Max. Counts 65535 (16-bit)
Frequency 100 Hz
Min. Pulse Width 5 ms
Input Impedance 10 kΩ
Overvoltage Protection ±70 VDC
Relay Output
Channels 4 (2 x Form A, 2 x Form C)
Type Power Relay
Contact Material Silver Tin Alloy
Contact Rating Form A:
16 A @ 250 VAC
10 A @ 30 VDC

Form C:
NO: 10 A @ 250 VAC
NC: 6 A @ 250 VAC
Operate Time 10 ms
Release Time 5 ms
Electrical Endurance 1 x 10^5 ops.
Mechanical Endurance 1 x 10^7 ops.
Power on Value Programmable
Safe Value Programmable
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol Modbus RTU, DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.4 W
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing
