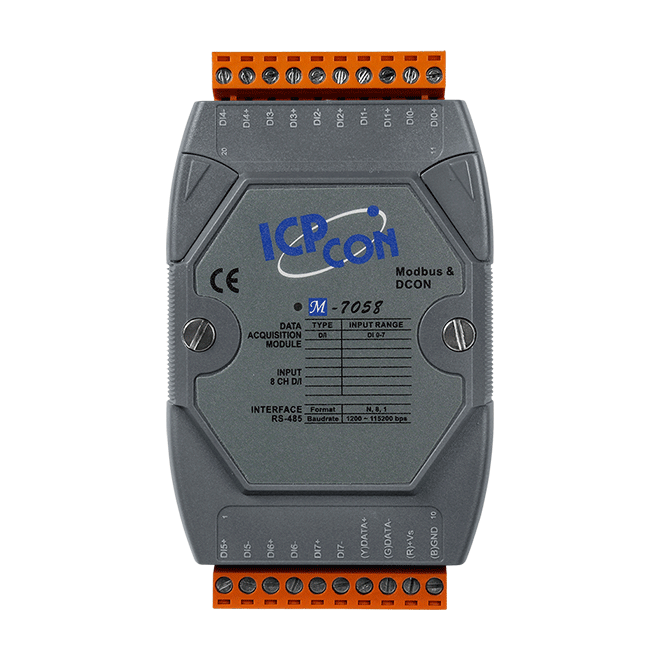

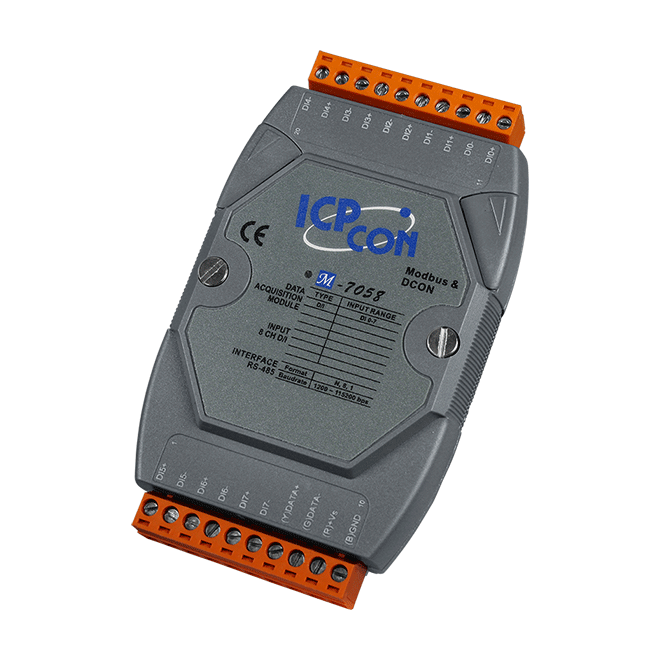

M-7058-G

8-ch Isolated (Wet, 80~250 VAC/±80~±250 VDC) DI Module
M-7058-G
M-7058-G
M-7058-G
M-7058-G

Features

  • Supports AC/DC Digital Input
  • 8 Differential Digital Inputs
  • High Over-voltage Input Protection
  • All Channels Can be Used as 16-bit Counters
  • Channel-to-Channel Isolation
  • Built-in Dual Watchdog
CE UKCA FCC RoHS WEEE

Introduction

The M-7058/M-7058D offers 8 differential channels for AC/DC digital input, each of which features channel-to-channel photocoupler isolation. All DI channels are also able to be used as 16-bit counters. The M-7058D has 8 LED indicators for channel status monitoring. ESD protection of ±4 kV and 3750 VDC intra-module isolation are standard. The M-7058(D) supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7058(D).

Applications


• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES M-7058-G     CR DESCRIPTION8-ch Isolated (Wet, 80~250 VAC/±80~±250 VDC) DI Module using DCON and Modbus Protocols (Gray Cover) (RoHS)
This combination include other products.

Similar Products

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3750 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status 1 x Power and Communication
Digital Input/Counter
Channels 8
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level 80 ~ 250 VAC
±80 ~ ±250 VDC
OFF Voltage Level 30 VAC Max.
±30 VDC Max.
Max. Counts 65535 (16-bit)
Frequency 100 Hz
Min. Pulse Width 5 ms
Input Impedance 68 kΩ
Overvoltage Protection 300 VAC/VDC Max.
Channel-to-Channel Isolation ±2 kV
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol Modbus RTU, DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 0.3 W
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing
