M-7041D-A5-G

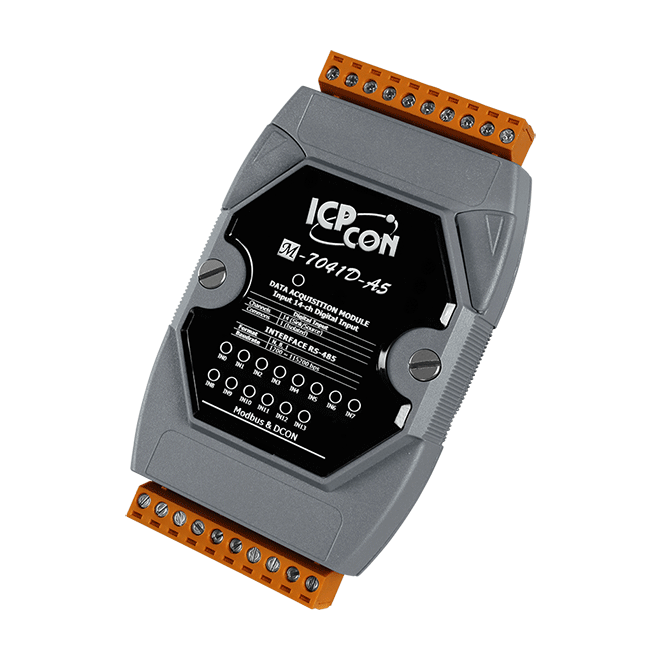

14-ch High Voltage (Wet, 68~150 VDC), Isolated DI Module with LED Display
Features
- 150V High Voltage Digital Input
- Sink- or Source-type Digital Input
- Photocoupler Isolation
- All Channels Can be Used as 16-bit Counters
- Built-in Dual Watchdog
Introduction
The M-7041-A5/M-7041D-A5 provides 14 channels for high-voltage digital input, each of which features photocoupler isolation. The input voltage level can be up to 150 V. Either sink- or source-type inputs can be selected via wire connections, and all channels can be used as 16- bit counters. The M-7041D-A5 has 14 LED indicators for channel status monitoring. The M-7041(D)-A5 support both Modbus RTU and DCON protocols, which can be configured via software. 4 kV ESD protection and 3750 VDC intra-module isolation are standard.
Applications
• All Types of ON/OFF Control
• Building Automation
• Industrial Automation
• Industrial Machinery
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Display | |
|---|---|
| Type | I/O LED Indicator |
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV, ±2 kV for the RS-485 Port |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 14 x Digital Input |
| Digital Input/Counter | |
|---|---|
| Channels | 14 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +68 ~ +150 VDC |
| OFF Voltage Level | +48 VDC Max. |
| Max. Counts | 65535 (16-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Input Impedance | 50 kΩ |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | (N, 8, 1) |
| Protocol | Modbus RTU, DCON |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC |
| Consumption | 1.0 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
