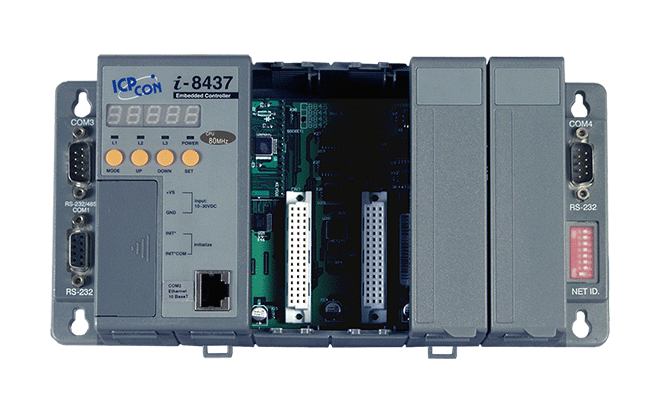

4-slot ISaGRAF Based Ethernet Embedded Controller with 80186-80 CPU, 4 COM Ports and 1 Ethernet Port
Introduction
ISaGRAF I-8000 Series (I-8437-80/8837-80, I-8417/8817) is a PAC built-in ISaGRAF SoftLogic. ISaGRAF is a Windows programming tools and provides powerful debug tools such as Online Monitor&Control and Offline Simulation. There are more than 300 function blocks built-in the PAC for various Industrial Applications including PID, motion, remote IO, serial communication, SMS, retain variable, scaling, etc.
For hardware specification, I-8xx7 has 4 serial ports, supports Modbus RTU slave protocol and it can easily connect with PC/HMI/OPC Server and Touch panel. The I-8xx7 also supports up to 2 ports of Modbus RTU / ASCII master protocol to integrate with other Modbus devices. The I-8x37-80 has one 10M Ethernet port.
The I-8xx7 supports various High/Low profile I/O modules. Users can choose from Local I/O modules: I-8K/I-87K I/O modules and RS-485 Remote I/O modules: I-7000 or expansion units (I-87Kn or RU-87Pn) plugged with I-87K serial I/O modules. Compared to I-8437/8837 (It is phased out), I-8x37-80 is faster at all!
Notice:
ISaGRAF can not run on 64-bit Windows 7/8 PCs. Win-GRAF would be proper choice.
For hardware specification, I-8xx7 has 4 serial ports, supports Modbus RTU slave protocol and it can easily connect with PC/HMI/OPC Server and Touch panel. The I-8xx7 also supports up to 2 ports of Modbus RTU / ASCII master protocol to integrate with other Modbus devices. The I-8x37-80 has one 10M Ethernet port.
The I-8xx7 supports various High/Low profile I/O modules. Users can choose from Local I/O modules: I-8K/I-87K I/O modules and RS-485 Remote I/O modules: I-7000 or expansion units (I-87Kn or RU-87Pn) plugged with I-87K serial I/O modules. Compared to I-8437/8837 (It is phased out), I-8x37-80 is faster at all!
Notice:
ISaGRAF can not run on 64-bit Windows 7/8 PCs. Win-GRAF would be proper choice.
Applications
Ordering Information
PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
---|---|---|---|
This combination include other products.
Similar Products
Software | |
---|---|
OS | MiniOS7 |
Protocol | • NET ID • Modbus TCP/IP Slave • Modbus RTU/ASCII Master • Modbus RTU Slave • DCON Protocol • User-defined Protocol • I/O Type: DCON, Modbus RTU remote I/O • Fbus • Ebus • SMS • FTP Client |
Development | Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3) |
CPU Module | |
---|---|
CPU | 80186 or compatible, 16-bit and 80 MHz |
64-bit Hardware Serial Number | Yes |
EEPROM | 2 KB |
Flash | 512 KB |
NVRAM | 31 Bytes |
SRAM | 512 KB |
Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
Watchdog Timer | Yes |
Display | |
---|---|
Type | 5 x Digit 7 Segment LED Display |
LED Indicators | |
---|---|
Status | 4 x Programmable |
I/O Expansion | |
---|---|
I/O Type | I-8K, I-87K series |
Slots | 4 |
HMI | |
---|---|
DIP Switch | 8-bit for address |
Push Button | 4 |
Ethernet | |
---|---|
Ports | 1 x RJ-45, 10Base NE2000 compatible |
COM Ports | |
---|---|
Ports | 2 x RS-232, 1 x RS-485, 1 x RS-232/RS-485 |
Power | |
---|---|
Input Range | +10 ~ 30 VDC |
Consumption | 3.9 W |
Mechanical | |
---|---|
Dimensions (mm) | 231 x 110 x 77 (W x L x H) |
Installation | DIN-Rail, Wall mounting |
Environment | |
---|---|
Operating Temperature | -25 ~ +75°C |
Storage Temperature | -30 ~ +85°C |
Humidity | 10 ~ 95 % RH, Non-condensing |
