I-7565M-HS

High Speed USB to 2-port CAN Bus Converter

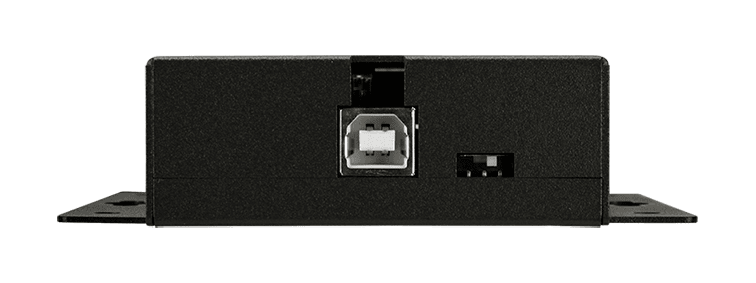

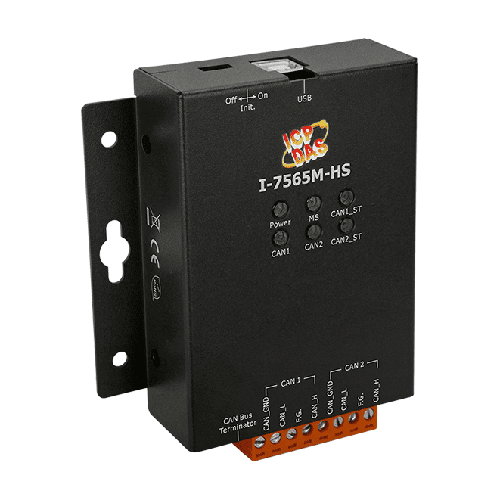

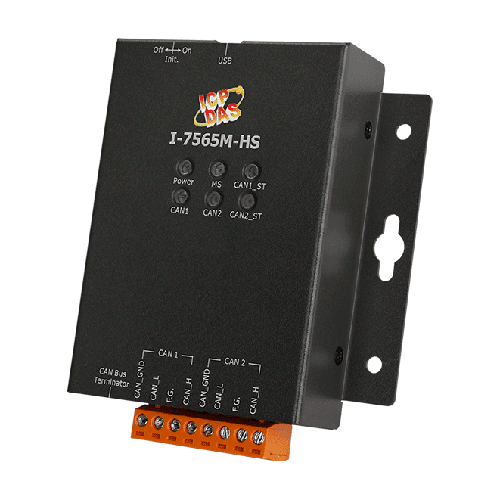

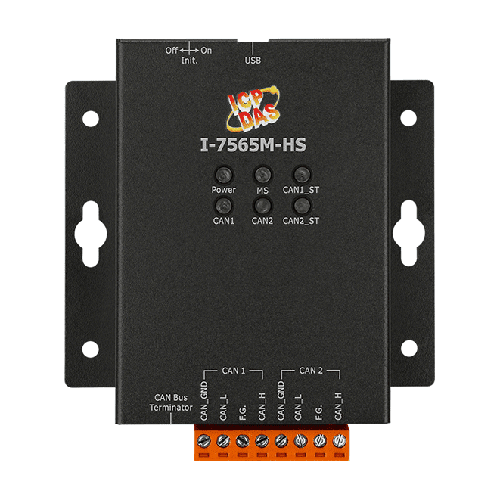

I-7565M-HS
I-7565M-HS
I-7565M-HS
I-7565M-HS
I-7565M-HS
I-7565M-HS
I-7565M-HS
I-7565M-HS
I-7565M-HS
I-7565M-HS

Features

  • Compatible with USB 2.0 (High Speed)
  • Compatible with the ISO 11898-2 standard
  • Support both CAN2.0A and CAN2.0B specifications
  • No external power supply (powered by USB)
  • Support CAN Bus message filter configuration
  • Timestamp of CAN message with at least ±10us precision
  • Watchdog inside
  • Built-in dip-switch to select 120 ohm terminal resister for CAN Bus
  • Support firmware update via USB
  • Provide utility tool for users module setting and CAN Bus communication testing conveniently
  • Provide API library for user program development
CE UKCA FCC RoHS WEEE

Introduction

I-7565M-HS is a high speed USB to CAN converter with two CAN channels. It improves the transformation speed of other I-7565 series, and allows receiving max. 15000 standard 2.0A CAN frames per second. I-7565M-HS support CAN2.0A/2.0B protocol and different baud rates from 10 kbps to 1000 kbps. The important feature of I-7565M-HS is to support the user-defined baud rate function no matter what the baud rate is. When connecting I-7565M-HS to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of CAN Bus network easier and quicker by applying I-7565M-HS. The application fields can be CAN Bus monitoring, building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc. The following is the application structure for the USB to CAN module. The PC can be the CAN host, monitor or HMI to access/control the CAN devices through the CAN network by the I-7565M-HS Converter. The module let users to communicate with CAN devices easily from PC with USB interface.


Applications

  • Control System
  • Building Automation
  • Factory Automation
  • Monitor System
  • Vehicle Automation

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES I-7565M-HS     CR DESCRIPTIONHigh Speed USB to 2-port CAN Bus Converter (Metal Case) (RoHS)
This combination include other products.

Similar Products

Software
SDK C#.Net, VB.Net, VC++.Net
LED Indicators
Status 1 x Power
1 x Module status
4 x CAN status
USB
Specification USB 2.0 High Speed (480Mbps)
Connector 1 x USB (Type B)
Driver Built-in Windows 7/8.1/10/11
CAN
Ports 1
Baud Rate 10 k ~ 1 M bps
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for photocoupler
Terminal Resistor DIP switch for the 120 Ω terminal resistor
Specification ISO-11898-2, CAN 2.0A and CAN 2.0B
Filter Yes
Receive Buffer 512 data frames
Data Flow 15000 fps for Tx/Rx
Power
Input Range +10 VDC ~ +30 VDC
Consumption 1.5 W
Mechanical
Casing Metal
Dimensions (mm) 111 x 102 x 27 (W x L x H)
Installation Wall Mount
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing
  • Provide CAN Bus baud rate / acceptance filter configuration
  • Easily transmit/receive CAN messages for testing and display the time-stamp of each received CAN message
  • Provide saving the CAN message as “TXT” file for data log
  • Provide sending CAN message by using the internal timer of module for high precision transmission
  • Check / Reset module status remotely and get current CAN Bus message flow
