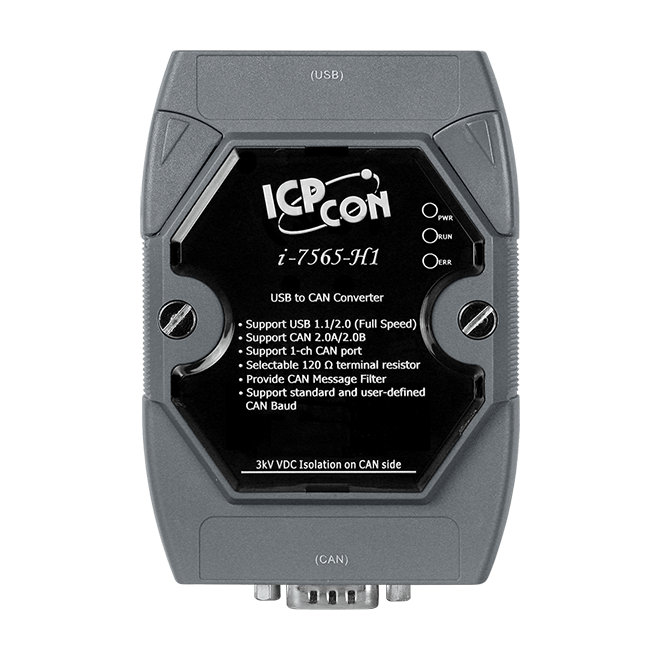

High Performance Intelligent USB to CAN Converter
I-7565-H1-G
I-7565-H1-G
I-7565-H1-G
I-7565-H1-G
I-7565-H1-G
I-7565-H1-G

Features

  • Fully compliant with USB 1.1/2.0(Full Speed)
  • Fully compatible with the ISO 11898-2 standard
  • Support both CAN2.0A and CAN2.0B
  • Integrated with one or two CAN bus channels
  • Programmable CAN bus baud rate from 5Kbps to 1Mbps or user-defined baud rate
  • Support CAN bus acceptance filter configuration
  • Time-stamp of CAN message with at least ±1ms precision
  • Provide "Hardware Serial Number" to protect users' program
  • Provide "Listen Only Mode" function
  • Provide "CAN Error Frame" Information
  • Provide "Adjustable Bit-Timing of CAN Baud (Tseg2)" function
  • Increase HWSendTimer Number from 1 set to 5 sets and add "AddMode" and "AddVal" parameter for HWSendTimer
  • Add "User Defined ISR" interrupt function
  • The CAN buffer is 256 data frames for I-7565-H1
  • Driver supported for Windows 2K/XP/Vista/7 (32 & 64 bit)/8.x, and Linux
Note: We have verified to drive 100 CAN nodes at the same time via one CAN port of I-7565-H1.
CE UKCA FCC RoHS WEEE

Introduction

I-7565-H1 are the high performance intelligent USB to CAN converters with one and two CAN channels separately. They improve the transformation speed of the I-7565, and allows receiving max. 3000 standard 2.0A CAN frames per second. Both I-7565-H1 support CAN2.0A/2.0B protocol and different baud rates from 5 Kbps to 1 Mbps. The important feature of I-7565-H1/H2 is to support the user-defined baud rate function no matter what the baud rate is. When connecting I-7565-H1 to PC, PC will load the relevant device driver automatically (hot plug & play). Therefore, users can make data collection and processing of CAN bus network easier and quicker by applying I-7565-H1. The application fields can be CAN bus monitoring, building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc.

The following is the application structure for these two USB/CAN modules. The PC can be the CAN host, monitor or HMI to access/control the CAN device through the CAN network by the I-7565-H1/H2 Converter. These modules let users to communicate with CAN devices easily from PC with USB interface.

I-7565-H1: High Performance intelligent USB to 1- port CAN bus Converter.


2500Vrms isolation on CAN side
The CAN port of I-7565-H1 is isolated with 2500Vrms. This isolation can protect the local devices from the damage signal coming from CAN network.

Watchdog inside
The I-7565-H1/H2 Watchdog is a hardware reset circuit to monitor the operation status of I-7565-H1. When working in a harsh or noisy environment, the I-7565-H1 may be down by the external signal. The circuit may let the I-7565-H1 work continuously and never halt.

Power / Communication / Error indicator display
There are three indicators on the I-7565-H1.The power indicator can help user to check whether the I-7565-H1 is standby. The communication indicator is used to show whether the I-7565-H1 is transmitting/receiving messages. The Error indicator will be turned on when some errors occur on the I-7565-H1.

Applications

  • Factory Automation
  • Building Automation
  • Home Automation
  • Control System
  • Monitor System
  • Vehicle Automation

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES I-7565-H1-G     CR DESCRIPTIONHigh Performance Intelligent USB to 1-port CAN bus converter (Plastic Case) (RoHS)
Includes CA-USB18 (1.8M Cable)
This combination include other products.

Similar Products

Software
SDK VB 6.0, VC++ 6.0, C#.Net, VB.Net, LabVIEW, Linux
LED Indicators
Status 1 x Power
2 x CAN status
USB
Specification USB 1.1 and USB 2.0 standard
Transfer Speed 12M kbps
Connector 1 x USB (Type B)
Driver Windows 2000/XP/7/8/10, Linux
Receive Buffer 100 data frames
CAN
Ports 1
Baud Rate 5 k ~ 1 M bps
Isolation 3000VDC for DC-to-DC
2500Vrms for photo-couple
Terminal Resistor Selectable 120Ω terminal resistor by jumper
Specification ISO-11898-2, CAN 2.0A and CAN 2.0B
Filter Yes
Receive Buffer 256 data frames
Pin Assignment C.I.A. DS-102 (CAN_H=7, CAN_L=2)
Data Flow 3000 fps
Power
Input Range USB power delivery
Consumption 1.5 W
Mechanical
Casing Plastic
Dimensions (mm) 72 x 108 x 35 (W x L x H)

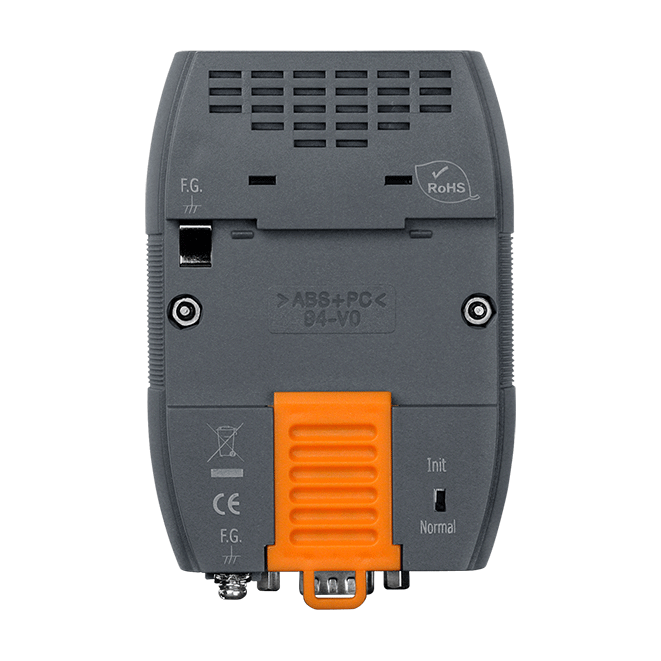

Installation DIN-Rail
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing
  • Provide CAN bus user-defined baud rate / acceptance filter configuration
  • Easily transmit/receive CAN messages for testing and display the time-stamp of each received CAN message
  • Provide saving the CAN message as “TXT” file for data log
  • Provide sending CAN message by using the internal timer of module for high precision transmission
  • Check / Reset module status remotely and get current CAN bus message flow
  • Users can develop own program by API library quickly and easily
  • Provide “CAN bus Flow Trend” screen in utility
  • Provide “Scroll” and “OverWrite” mode for CAN RecvMsg Table in utility
  • Provide "CAN-ID Tagging" function (replace the CAN-ID by a symbolic name) in OverWrite Mode

LabVIEW Tool

In order to apply the I-7565-H1 to CAN network with NI LabVIEW software, we provide a LabVIEW 8.x library and demo for the purpose. It is very useful to develop the CAN-relative application in NI LabVIEW environment by using I-7565-H1. It is easy to use and can help user to rapidly reduce their program development cycle. If users want to develop a LabVIEW industrial application with CAN network, the LabVIEW library and demo of I-7565-H1 is very helpful.

Library & Demo
