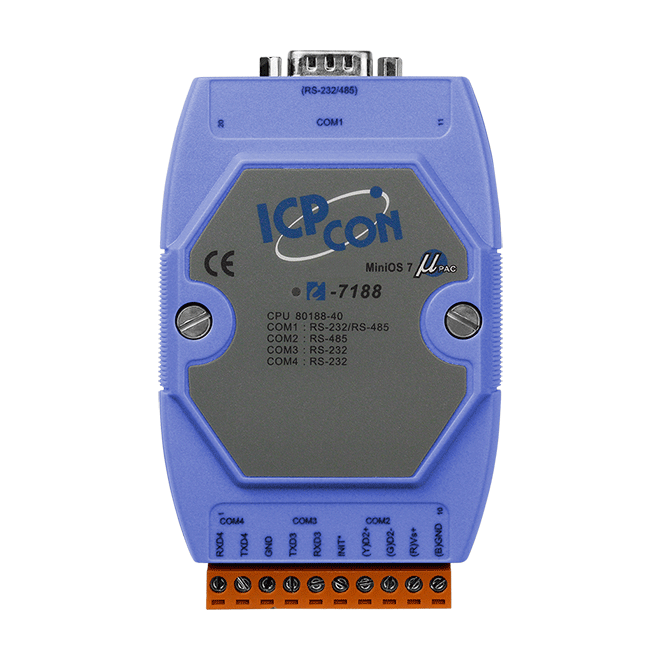

I-7188/512
Serial PAC with 80188-40 CPU, MiniOS7 and 256KB SRAM (Blue Cover)
Features
• Built-in High Performance MiniOS7 from ICP DAS
• Easy-to-use Software Development Tool Kits (Using C language)
• Various Storage Media
‣ 512 KB Flash
‣ 2 KB EEPROM
• Various Communication Interfaces
‣ RS-232
‣ RS-485
• Programmable LED Indicator
• Build-in Watchdog Timer
• Easy-to-use Software Development Tool Kits (Using C language)
• Various Storage Media
‣ 512 KB Flash
‣ 2 KB EEPROM
• Various Communication Interfaces
‣ RS-232
‣ RS-485
• Programmable LED Indicator
• Build-in Watchdog Timer
Introduction
The I-7188/512 is for industry applications and can be used to replace PC or PLC devices in harsh environments. The I-7188/512 controller is designed for palm-size embedded systems that require high reliability, PC-compatibility, and compactness at a reasonable price.
The controllers can be integrated into an OEM product as a processor core component. By building your product around I-7188/512 controller, you reduce the time from design to market introduction, cut development costs, minimize technical risks, and deliver a more reliable product. Depending on the type of embedded firmware programs that are being developed, the I-7188/512 can be used as a single versatile controller.
The controllers can be integrated into an OEM product as a processor core component. By building your product around I-7188/512 controller, you reduce the time from design to market introduction, cut development costs, minimize technical risks, and deliver a more reliable product. Depending on the type of embedded firmware programs that are being developed, the I-7188/512 can be used as a single versatile controller.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
|---|---|
| CPU | 80188, 40MHz or compatible |
| EEPROM | 2 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 256 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| LED Indicators | |
|---|---|
| Status | 1 x System |
| COM Ports | |
|---|---|
| Ports | 2 x RS-232, 1 x RS-485, 1 x RS-232/RS-485 |
| Baud Rate | 115200 bps Max. |
| Power | |
|---|---|
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.0 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 119 x 33 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 %, Non-condensing |
