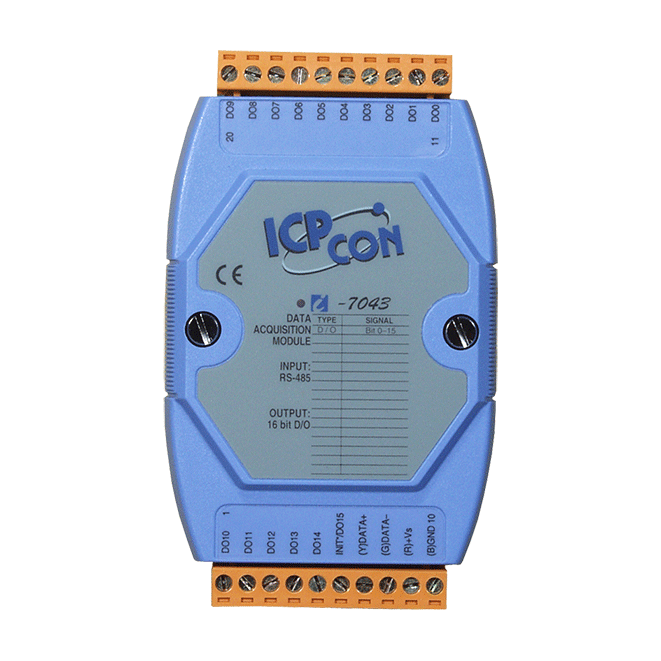

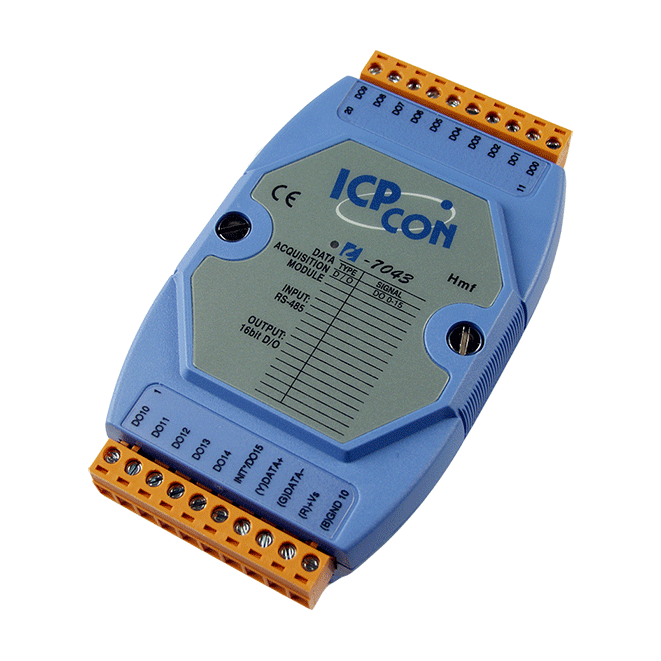

I-7043

16-ch Non-isolated (Sink, NPN, 10~30 VDC) DO Module
I-7043
I-7043
I-7043
I-7043

Features

  • 16 Open Collector Outputs
  • Sink-type Digital Outputs
  • Configurable Power-on Value and Safe Value Settings
  • Built-in Dual Watchdog
CE UKCA FCC RoHS WEEE

Introduction

The I-7042 offers 13 channels digital output channels, each of which features photocoupler isolation and supports sink-type output using an open collector. There are also options to enable both power-on and safe values. The I-7042D has 13 LED indicators that can be used to monitor the status of DO channels. 3750 Vrms intra-module isolation is standard. The I-7043 offers 16 digital output channels, each of which are non-isolated and support sink-type output using an open collector. There are also options to enable both power-on and safe values. The I-7043D has 16 LED indicators that can be used to monitor the status of DO channels. The hardware specifications for the M-7043 are the same as the I-7043, and both support the Modbus RTU and DCON protocols, which can be configured via software.

Applications


• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES I-7043     CR DESCRIPTION16-ch Non-isolated (Sink, NPN, 10~30 VDC) DO Module using DCON Protocol (Blue Cover) (RoHS)
This combination include other products.

Similar Products

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3750 Vrms
LED Indicators
Status 1 x Power and Communication
Digital Output
Channels 16
Type Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +10 ~ +30 VDC
Load Current 100 mA/channel
Power on Value Programmable
Safe Value Programmable
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 0.4 W
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing
