HDR-15-24
Ultra slim DIN rail power supply; Input range 85-264 VAC (277 VAC available); Output 24 VDC/0.63 A
Features
- Ultra slim design with 17.5 mm
- Universal input 85-264 VAC(277 VAC operational)
- DC output voltage adjustable
Introduction
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Safety | |
|---|---|
| Standard | UL62368-1, U 508, TUV EN61558-2-16 IEC62368-1, , BSMI CNS14336-1 a L , |
| EMC | |
|---|---|
| Standard | EN55024, EN55035, EN61000-6-2, EN61204-3 |
| Input | |
|---|---|
| Voltage Range | 85-264 VAC (277 VAC available) 120-370 VDC (390 VDC available) |
| Frequency Range | 47 ~ 63 Hz |
| Inrush Current (Typ.) | COLD START 20 A/115 VAC 40 A/230 VAC |
| Output | |
|---|---|
| Ripple & Noise (Max.) | 150mVp-p |
| Voltage Adj. Range | 21.6 ~ 29 V |
| Voltage Tolerance | ±1.0% |
| Line Regulation | ±1.0% |
| Load Regulation | ±1.0% |
| Setup, Rise Time | 2000ms, 80ms/230VAC 2000ms, 80ms/115VAC at full load |
| DC Voltage | 24 VDC |
| Rated Power | 15.2 W |
| Rated Current | 0.63A |
| Efficiency | 86% typ. |
| Protection | |
|---|---|
| Over Voltage | 30 ~ 36V |
| Overload | 110 ~ 145% rated output power |
| Mechanical | |
|---|---|
| Casing | Plastic |

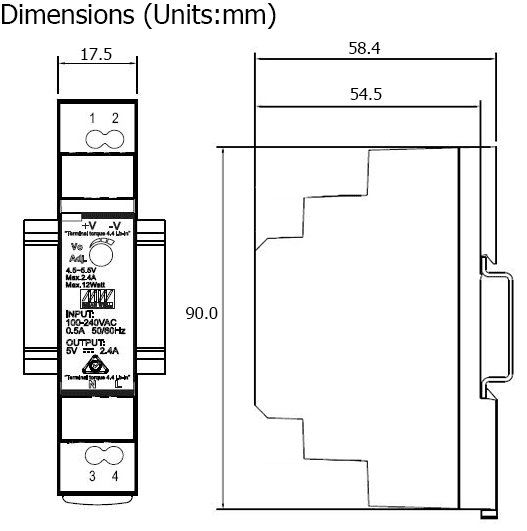

| Dimensions (mm) | (17.5 * 54.5 * 90) mm |
| Environment | |
|---|---|
| Operating Temperature | -30 ~ +70 °C |
| Storage Temperature | -40 ~ +85°C |
| Humidity | 20 ~ 90% RH Non-condensing |
