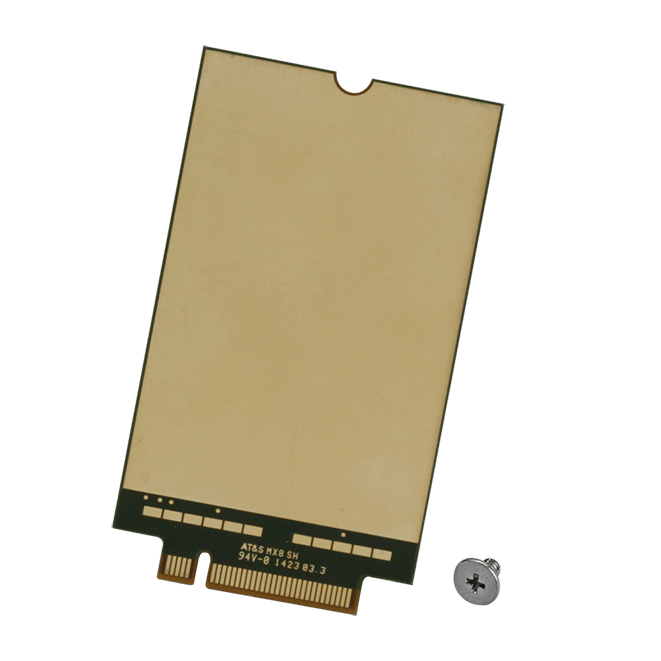

FN990A28
5G/LTE Data Card M.2 module
Features
- Supports NSA and SA modes
- Supports EN-DC architecture
- Supports global 5G and LTE-A tributaries
- Utilizes 3GPP Release 16 technology
- Made in Vietnam
Introduction
The FN990A28 is a 5G module designed with standard M.2 specifications for M2M and IOT applications.
The module adopts 3GPP Release 16 technology, supports 5G NSA and SA modes and EN-DC architecture, and is backward compatible with existing GSM/GPRS networks.
The module adopts 3GPP Release 16 technology, supports 5G NSA and SA modes and EN-DC architecture, and is backward compatible with existing GSM/GPRS networks.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| 3G System | |
|---|---|
| Data Transmission Rate | 42 DL/11 UL Mbps |
| Frequency Band | WCDMA: B1/B2/B4/B5/B6/B8/B19 |
| 4G System | |
|---|---|
| Data Transmission Rate | 1.6 Gbps DL / 211 Mbps UL |
| Frequency Band | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28 /B30/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43 /B48 LTE-SDL: B29/B32/B46 |
| 5G System | |
|---|---|
| Data Transmission Rate | 5G NSA: 3.4 Gbps DL / 0.46 Gbps UL 5G SA: 2.5 Gbps DL / 0.90 Gbps UL |
| Frequency Band | n1/n2/n3/n5/n7/n8/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n75/n77/n78/n79 SA/NSA default off -n12/n13/n14/n18/n26/n29/n76 |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30 × 52 × 2.25 mm |
| Environment | |
|---|---|
| Operating Temperature | -40 °C to +85 °C |
| Storage Temperature | -40 °C to +85 °C |
