ET-7217-A5

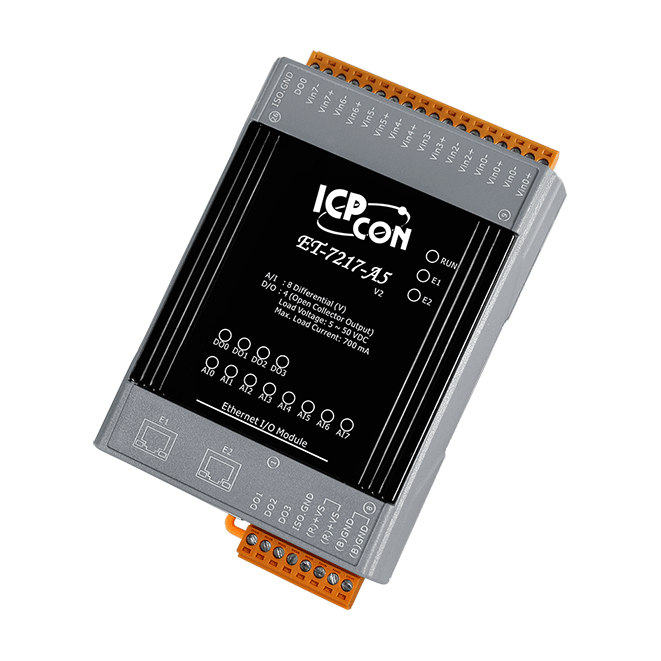

Ethernet I/O Module with 2-port Ethernet Switch, 8-ch AI, 4-ch DO
ET-7217-A5
ET-7217-A5
ET-7217-A5
ET-7217-A5
ET-7217-A5
ET-7217-A5

Features

  • Built-in Web Server
  • Web HMI
  • Support for both Modbus TCP and Modbus UDP Protocols
  • Communication Security
  • 2-port Ethernet Switch for Daisy-Chain Topology
  • Dual Watchdog
  • I/O Pair Connection
  • Built-in I/O
    • AI: 8 Channels High Voltage Input
    • DO: 4 Channels
CE UKCA FCC RoHS WEEE

Introduction

The ET-7217-A5 is a module with 8-channel differential analog inputs and 4-channel digital ouputs. It provides programmable input range on all analog channels ±50 V or ±150 V and digital output can be set alarm output with Short-circuit protection and overload protection. Each analog channel is allowed to configure an individual range and has ±200 VDC high overvoltage protection. The sampling rate of ET-7217-A5 is changeable; there are fast mode and normal mode for your consideration. It also has qualification for 4 kV ESD protection as well as 2500 VDC intra-module isolation.

Applications

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES ET-7217-A5     CR DESCRIPTIONEthernet I/O Module with 2-port Ethernet Switch, 8-ch AI, 4-ch DO (RoHS)
This combination include other products.

Similar Products

Software
Built-in Web Server Yes
CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
2-way Isolation Ethernet: 1500 VDC
I/O: 2500 VDC
EMS Protection
EFT (IEC 61000-4-4) ±2 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
Surge (IEC 61000-4-5) ±2 kV for Power Line
LED Indicators
Status Run, Ethernet, I/O
Analog Input
Channels 8 (Differential)
Type Voltage
Range ±50 V, ±150 V
Resolution 16-bit
Accuracy Normal Mode: ±0.1%
Fast Mode: ±0.5% or better
Sampling Rate Normal Mode: 10 Hz (total channels)
Fast Mode: 50 Hz (total channels)
Input Impedance Voltage: 290 kΩ
Common Voltage Protection ±200 VDC
Overvoltage Protection ±200 VDC
Individual Channel Configuration Yes
Isolation ±400 VDC, Virtual Channel to Channel Isolation
Digital Output
Channels 4
Type Isolated Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +5 to +50 VDC
Load Current 700 mA/channel
Overvoltage Protection +60 VDC
Overload Protection 1.4 A
Short-circuit Protection Yes
Power on Value Programmable
Safe Value Programmable
Ethernet
Ports 2 x RJ-45, 10/100 Base-TX, Swtich Ports
LAN bypass Yes
Access Control ID, Password and IP Filter
Protocol Modbus TCP, Modbus UDP
Power
Reverse Polarity Protection Yes
Consumption 4.2 W (max.)
Powered from Terminal Block +12 to +48 VDC
Mechanical
Dimensions (mm) 76 x 120 x 38 (W x L x H)
Installation DIN-Rail mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 to 90% RH, Non-condensing
