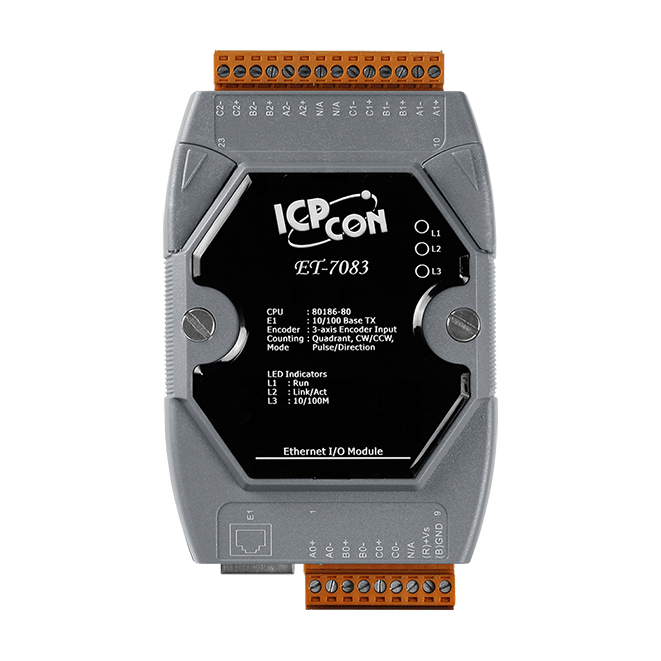

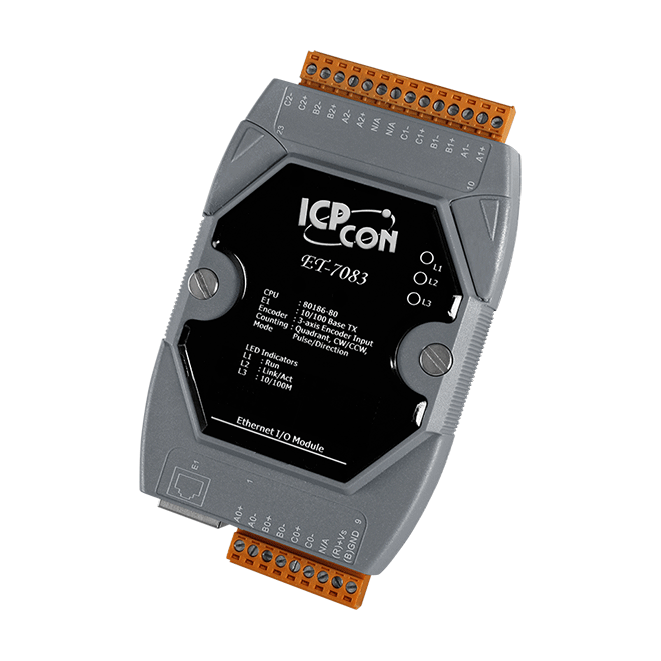

ET-7083
Ethernet I/O Module with 3-ch Encoder/Counter Input
Features
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- Dual Watchdog
- Built-in I/O
- 3-Axis 32-bit encoder/counter inputs
- 1 MHz max. for Quadrant mode
- 4 MHz max. for CW/CCW, Pulse/Direction mode
- Counter Value Retention
Introduction
The ET-7083 is a 3-axis high speed encoder/counter module. Each axis can be individually configured for Quadrant, Pulse/Direction, or CW/CCW counting modes. The maximum input rate for Quadrant counting mode is 1 MHz, and for Pulse/Direction, CW/CCW counting modes is 4 MHz. The encoder/counter module is equipped with a FRAM to retain the counter value after it is powered off. FRAM is a nonvolatile memory that can hold written data even after it is powered off. The data retention can be 10 years. And the feature can be configured as enabled or disabled.
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Software | |
|---|---|
| Built-in Web Server | Yes |
| CPU Module | |
|---|---|
| Watchdog Timer | Module, Communication (Programmable) |
| Isolation | |
|---|---|
| 2-way Isolation | Ethernet: 1500 VDC I/O: 2500 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | Run, Ethernet |
| Counter/Frequency/Encoder Input | |
|---|---|
| Channels | 3-axis |
| Counter Mode | Quadrant CW/CCW Pulse/Direction |
| Bits | 32-bit |
| ON Voltage Level | 5 V: +3.5 to +5 VDC 12 V with 1 kΩ External Resistor: +5 to +12 VDC 24 V with 2 kΩ External Resistor: +7 to +24 VDC |
| OFF Voltage Level | +2 VDC (max.) |
| Individual Channel Configuration | Yes |
| Max. Speed | Quadrant mode: 1 MHz CW/CCW mode: 4 MHz Pulse/Direction mode: 4 MHz |
| Counter Value Retention | Yes |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100 Base-TX |
| Access Control | ID, Password and IP Filter |
| Protocol | Modbus TCP, Modbus UDP |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Consumption | 2.7 W (max.) |
| Powered from Terminal Block | +10 to +30 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
| Installation | DIN-Rail mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 to 90% RH, Non-condensing |
