Power Supply, 90~264 VAC to 24 VDC/1.7A, 40 W, DIN-rail mounting
Features
- DC Outputs : +24 V/1.7 A
- Over load protection : auto recovery
- Short circuit protection : auto recovery
- Cooling : Free air convection
Introduction
DP-640 is a 40W, universal input switching mode power supply.
It is with 24V output options, which includes triple outputs, dual outputs and single output.

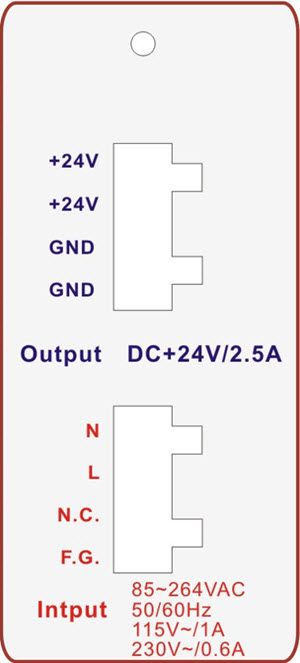

Pin Assignments
It is with 24V output options, which includes triple outputs, dual outputs and single output.
Pin Assignments
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Input | |
|---|---|
| Voltage Range | 90 VAC to 264 VAC |
| Frequency Range | 47 Hz ~ 63 Hz |
| Inrush Current (Typ.) | Cold start: less than 10A at 115 VAC less than 21A at 230 VAC |
| Output | |
|---|---|
| Hold Up Time (Typ.) | >20ms at rated load and 115 VAC |
| DC Voltage | 24 VDC |
| Rated Power | 40 W |
| Rated Current | 1.7 A |
| Efficiency | higher than 70% at nominal line and rated load |
| Short Circuit Protection | auto recovery |
| Protection | |
|---|---|
| Over Voltage | crowbar |
| Overload | auto recovery |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | (44 * 150 * 125) mm |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 °C ~ +85 °C |
