DN-PR4

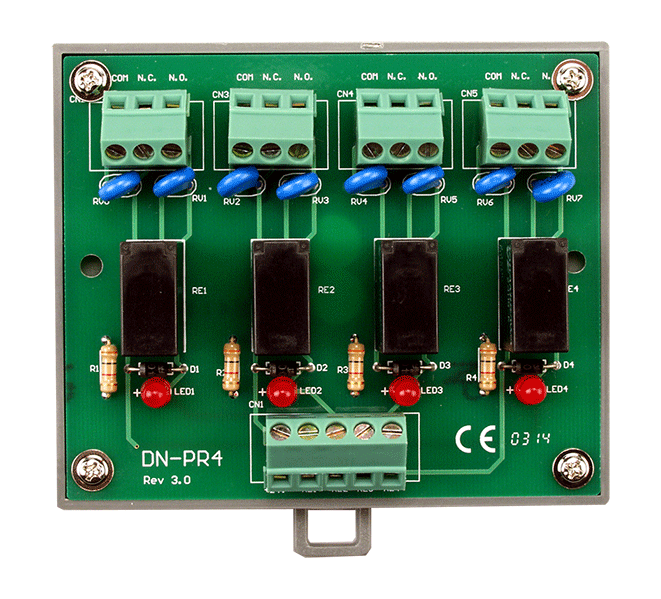

4-ch Power Relay Board (Pitch= 5.08 mm) with DIN-rail Mounting
DN-PR4
DN-PR4

Features

  • 4 Form C Relays (SPDT)
  • Industrial wiring terminals for easy output wiring
  • Switch up to 5A at 250VAC/5A at 30VDC
  • LEDs indicated relay status
  • Build-in diodes to protect from wrong connection of external power supply.
  • Designed Varistor to protect each channel’s high voltage spike
  • Connects directly to I-7000 modules, ISO-730 isolated output,ISO-C64 output, ISO-P32C32 isolated output…etc.
RoHS WEEE

Introduction

The DN-PR4 Features a DIN-rail mount and four form C electromechanical power relays for efficient switching of load by programmed control. The contact of each relay can control a 5 A load at 250VAC/30VDC. The relay is energized by applying a +24V voltage signal to the appropriate relay channel. Each output is equipped with a LED to display their status. Each output is equipped with a varistor that shunts the surge voltage of the inductive load or electromagnetic brake to protect the relay contact point. All relay control and relay outputs are accessible through the wiring terminals.

Applications

  • On/off control
  • Energy management
  • Test Automation
  • Process Control

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES DN-PR4     CR DESCRIPTION4-ch Power Relay Board (Pitch= 5.08 mm) with DIN-rail Mounting (RoHS)
This combination include other products.

Similar Products

Relay Output
Channels 4 X FORM C
Type 24 V Power Relay
Contact Rating 5 A @ 250VAC / 30 VDC
Operate Time 10 ms
Release Time 5 ms
Electrical Endurance 1 x 10^5
Mechanical Endurance 1 x 10^7
Power
Consumption 2.2W
Mechanical
Dimensions (mm) 103 mm x 86 mm x 30 mm (W x L x H)
Installation DIN-rail mounting
Environment
Operating Temperature 0 ~ 60°C
Storage Temperature -20 ~ 70°C
Humidity 5% to 90 % noncondensing
