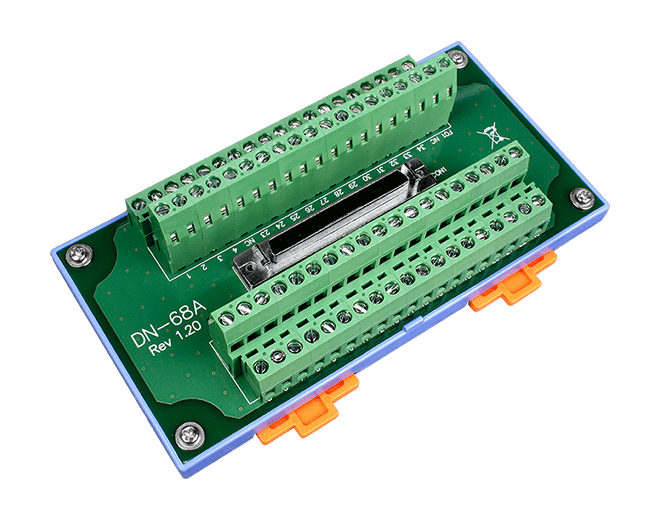

DN-68A
68-pin SCSI-II Female I/O Connector Block (Pitch= 5.08 mm) with DIN-rail Mounting
Features
- 68-pin SCSI-II Female Connector

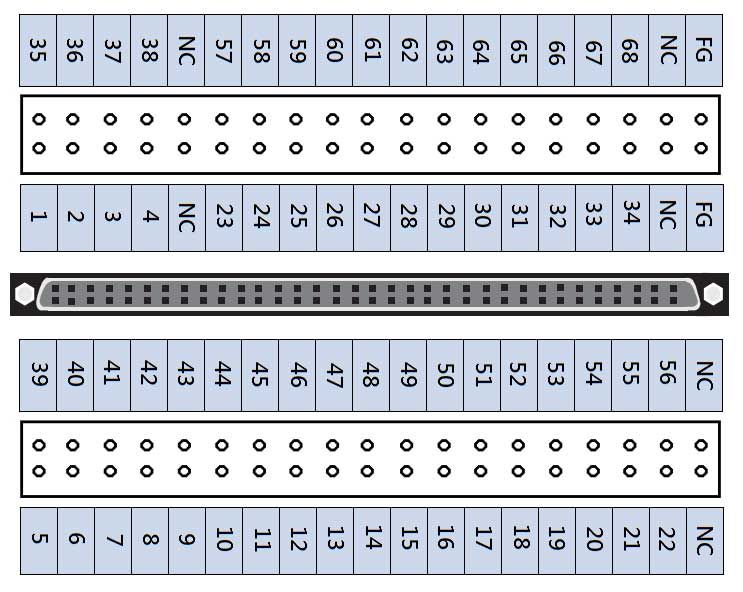

- For PCI-2602U Pin Assignment
- Screw Terminals for Easy Field Wiring
Introduction
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Mechanical | |
|---|---|
| Dimensions (mm) | 148 mm x 76 mm |
| Installation | DIN-Rail mounting |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% ~ 90% RH, non-condensing |
