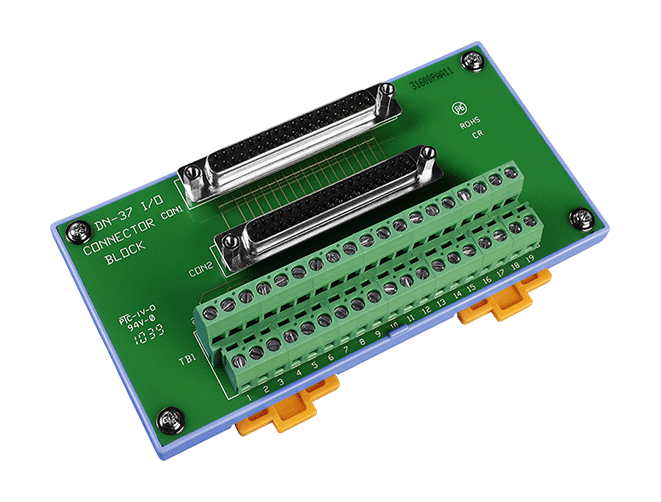

DN-37
Female DB37 to Screw Terminal Board (Pitch= 5.08 mm) with DIN-rail Mounting
Features
- 2 x 37-pin D-sub connector (One for expansion)
- 2 x 19-pin screw terminal blocks (pitch 5.08 mm)
- Current rating:1 A Max.
- Dielectric withstanding voltage: 250 VAC for 1 minute
- DC rating: 50 V Max.
Introduction
| Model |
Connector |
DIN-Rail Mounting | 37-pin D-sub Cable | |
|---|---|---|---|---|
| Male to Male | Male to Female | |||
| DN-37 | D-sub 37-pin connector x 2 19-pin header x 2 |
Yes | 1.0 M x 1 | - |
| DN-37/2 | Yes | 2.0 M x 1 | - | |
| DN-37/N | - | 1.0 M x 1 | - | |
| DN-37-A | Yes | - | 1.0 M x 1 | |
| DN-37/N-A | - | - | 1.0 M x 1 | |
| DN-37-AM/2 | Yes | - | 2.0 M x 1 | |
| DN-37-381 | D-sub 37-pin connector x 1 19-pin header x 2 |
Yes | 1.0 M x 1 | - |
| DN-37-381-A | Yes | - | 1.0 M x 1 | |
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Mechanical | |
|---|---|
| Dimensions (mm) | 144 mm x 72 mm |
| Installation | DIN-Rail mounting |
| Environment | |
|---|---|
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 70°C |
| Humidity | 5% ~ 90% RH, non-condensing |
