DL-100TMS-ZT

ZigBee Temperature and Humidity Module (ZigBee Router) (RoHS) (Asia Only)
DL-100TMS-ZT
DL-100TMS-ZT
DL-100TMS-ZT
DL-100TMS-ZT
DL-100TMS-ZT
DL-100TMS-ZT
DL-100TMS-ZT
DL-100TMS-ZT
DL-100TMS-ZT
DL-100TMS-ZT
DL-100TMS-ZT
DL-100TMS-ZT

Features

  • Measuring range: -20 ~ +60°C and 0 ~ 100% RH

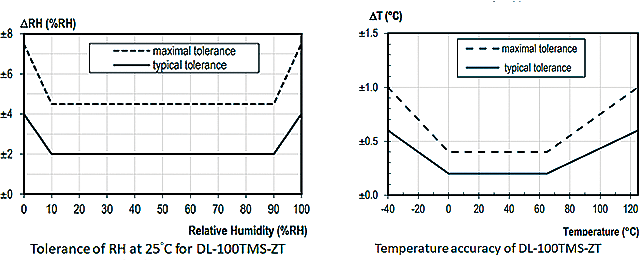

  • Accuracy: +/-0.4°C; +/-2.0% RH
  • Temperature and humidity data logs can reach 510 logs
  • Support Modbus RTU communication protocol (Slave)
  • Support ZigBee 2007 Pro
  • Wireless transmission distance up to 100 meters (Line of Sign)
  • Wireless packets support AES-128 encryption
  • IP66 waterproof rating
FCC RoHS WEEE

Introduction

DL-100TMS-ZT is a temperature and humidity logging module that can regularly detect and log temperature and humidity according to the parameters set by the user, and display the temperature, humidity, wireless parameters and other information sequentially on the screen.

In addition, this module supports Modbus RTU protocol, and users can use SCADA software to send Modbus commands to read back the current temperature and humidity through wireless communication of ZT-2550 or ZT-2570, or use the DL-100TMS-ZT Utility to read back the temperature and humidity information logged in the module through ZT-2550, and saves it as a CSV file (*.csv) or text file (*.txt).






Applications



Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES DL-100TMS-ZT     CR DESCRIPTIONZigBee Temperature and Humidity Module (ZigBee Router) (RoHS) (Asia Only)
This combination include other products.

Similar Products

EMS Protection
EFT (IEC 61000-4-4) ±1 kV for Power
ESD (IEC 61000-4-2) ±4 kV Contact Foreach Terminal
Temperature Measurement
Range -20 ~ +60˚C
Resolution 0.1˚C
Accuracy Typical: ±0.4˚C
Precision ±0.1˚C
Humidity Measurement
Range 0 ~ 100% RH (Relative Humidity)
Resolution 0.1% RH
Accuracy Typical: ±2% RH
Precision ±0.1% RH
ZigBee
Antenna 2.4 GHz-PCB Antenna (3 dBi,50 Ω)
Protocol Supports Modbus RTU
Standard ZigBee 2007 Pro
Transmission Power 11 dBm (Max.19 dBm)
Power
Consumption 0.5 W Max.
Mechanical
Dimensions (mm) 82 x 172 x 55 (W x L x H)
Environment
Operating Temperature -20 ~ +60°C
Storage Temperature -25 ~ +75˚C
Humidity 10 ~ 95% RH, Non-condensing
