DB-8125

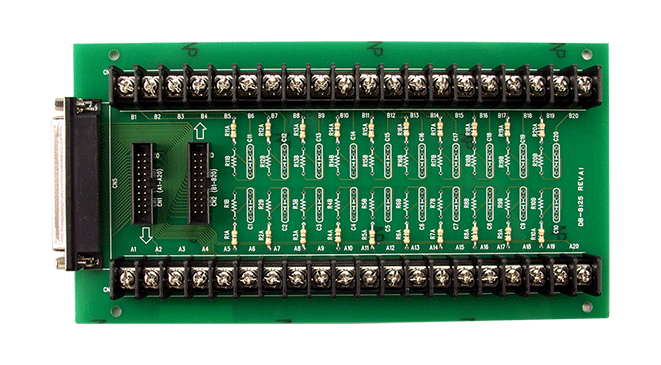

Female DB37 or two 20-pin connectors to Screw Terminal Board for PCI-1802U
DB-8125
DB-8125

Features

  • Screw terminal board using two 20 pin cable connector or One 37-pin D-sub connector.
RoHS WEEE

Introduction

Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES DB-8125     CR DESCRIPTIONFemale DB37 or two 20-pin connectors to Screw Terminal Board for PCI-1802U (RoHS)
Include: CA-3710 (DB37 Male to Male, 45º, 1M)
This combination include other products.

Similar Products

Mechanical
Dimensions (mm) 221 mm x 115 mm
Environment
Operating Temperature 0~ +60 °C
Storage Temperature -30 ~ +80 °C
Humidity 10% ~ 90%, no condensing
