DB-37
DB37 to Screw Terminal Board (Pitch= 5.08 mm)
Features

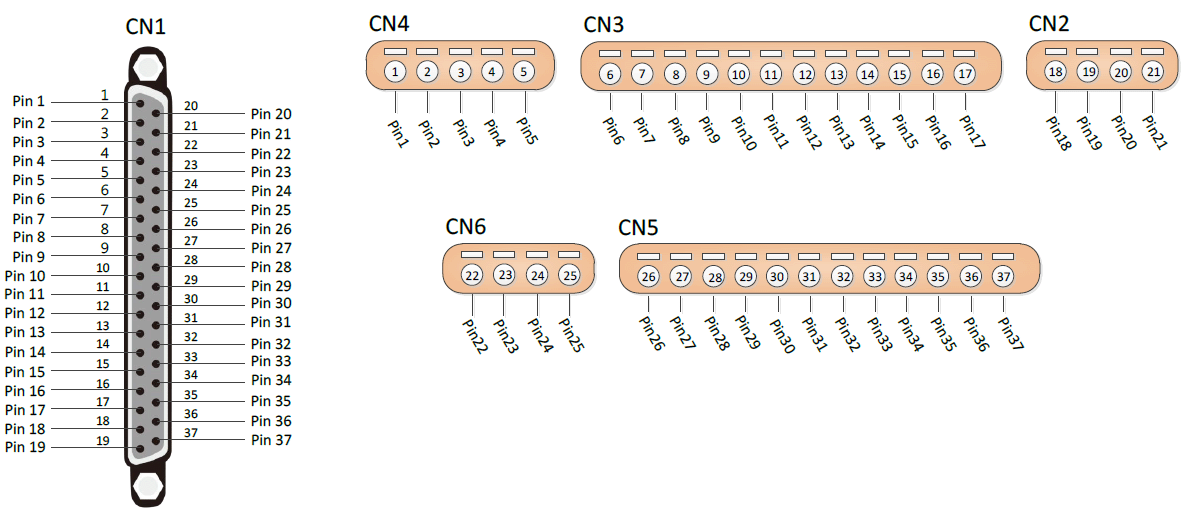

- 37 pin D-sub connector pin to pin screw terminal for any 37 pin D-sub connector of I/O board
- Current rating:1 A Max.
- Dielectric withstanding voltage: 250VAC for 1 minute
- DC rating: 50 V Max.
Introduction
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Mechanical | |
|---|---|
| Dimensions (mm) | 130 mm x 78 mm |
| Environment | |
|---|---|
| Operating Temperature | 0~ +60 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10% ~ 90%, no condensing |
