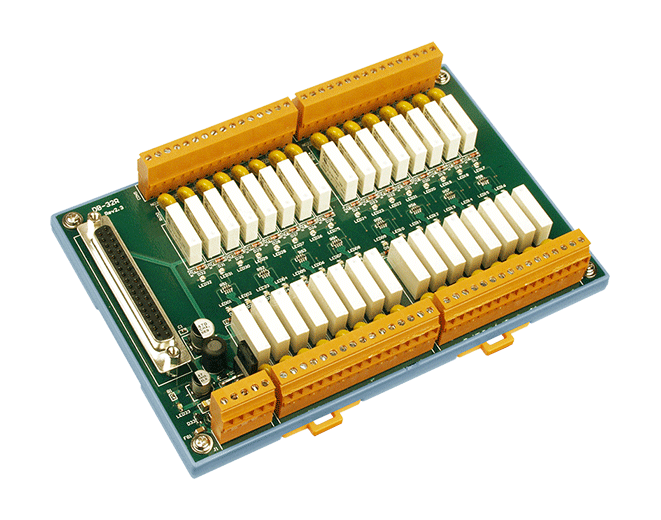

DB-32R
32-ch Form A, 3A Relay Board with DIN-rail Mounting
Features
- 32 Form A Signal Relay.
- The DB-32R accepts 37-pin connectors to control 32 Form A relays for use with PISO-C64 and ISO-C64.
Introduction
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Relay Output | |
|---|---|
| Channels | 32 x FORM A |
| Type | Signal Relay |
| Contact Rating | 250 VAC/30 VDC, 3 A 100,000 ops. Min. (10 ops./minute) 250 VAC/30 VDC, 5 A 6,000 ops. Min. (10 ops./minute) |
| Operate Time | 10 ms (typical) |
| Release Time | 10 ms (typical) |
| Electrical Endurance | 250 VAC/30 VDC, 3 A 100,000 ops. Min. (10 ops./minute), 250 VAC/30 VDC, 5 A 6,000 ops. Min. (10 ops./minute) |
| Mechanical Endurance | 20,000,000 ops. At no load. (300 ops./minute) |
| Power | |
|---|---|
| Input Range | +12 ~ 30 VDC |
| Consumption | 0.25 A @ +24 V Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 118 mm x 174 mm |
| Installation | DIN-rail mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10% ~ 90%, no condensing |
