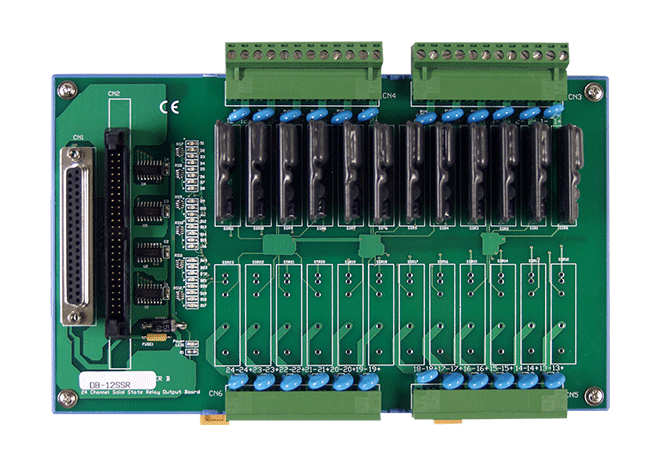

DB-12SSR

12-ch AC-Type Solid-State Relay Board
DB-12SSR
DB-12SSR

Features

  • 12 SSR (AC)
  • One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector
  • Connects directly to OPTO-22 compatible board
  • 8-channel max. load 4A/250V AC (per channel)
  • LED’s indicated relay status
  • Screw terminals for easy field wiring
WEEE

Introduction

The DB-12SSR has 12channels of optically isolated SSR(Solid State Relay) , and OPTO-22 compatible connector.

Applications

  • On/off control
  • Energy management
  • Test Automation
  • Process Control

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES DB-12SSR DESCRIPTION12-ch AC-Type Solid-State Relay Board
Include: CA-5015 (Flat Cable, 50-pin, 1.5 M)
This combination include other products.

Similar Products

Relay Output
Channels 12 X FORM A
Type SSR
Contact Rating 4 A @ 240VAC
Operate Time 1/2 cycle of voltage sina wave 1ms (max)
Electrical Endurance Long Life, No Arcing, No Bounce, No Switching Noise
Power
Consumption 400 mA @ 5 V
Mechanical
Dimensions (mm) 223.5 mm x 135.5 mm
Environment
Operating Temperature 0 ~ 60°C
Storage Temperature -20 ~ 70°C
Humidity 5% to 90 % noncondensing
